• PM004900 - Piston with rings and pin ET ENGINETEAM
Code: PM004900   |    Title: Piston with rings and pin

Piston with rings and pin - PM004900 ET ENGINETEAM - 03C107065AQ, 03C107065AS, 03C107065BF

Car: Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
Piston with rings and pin - PM004900 ET ENGINETEAM - 03C107065AQ, 03C107065AS, 03C107065BF
Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Head Diameter [mm]: 19 mm
Bolt Length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings
Stock: > 25 pcs
Where to buy?

EAN: 8592779017652

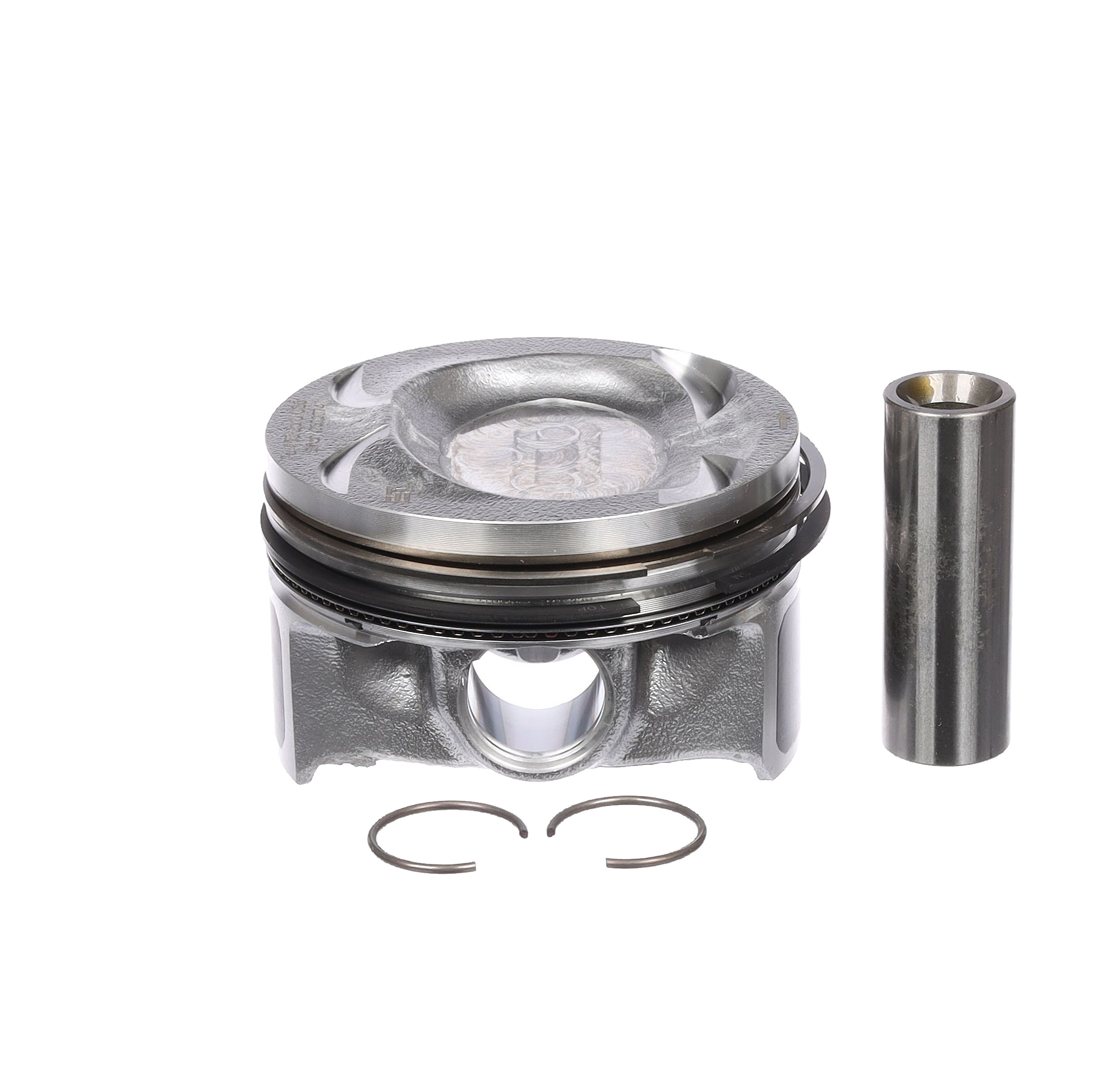

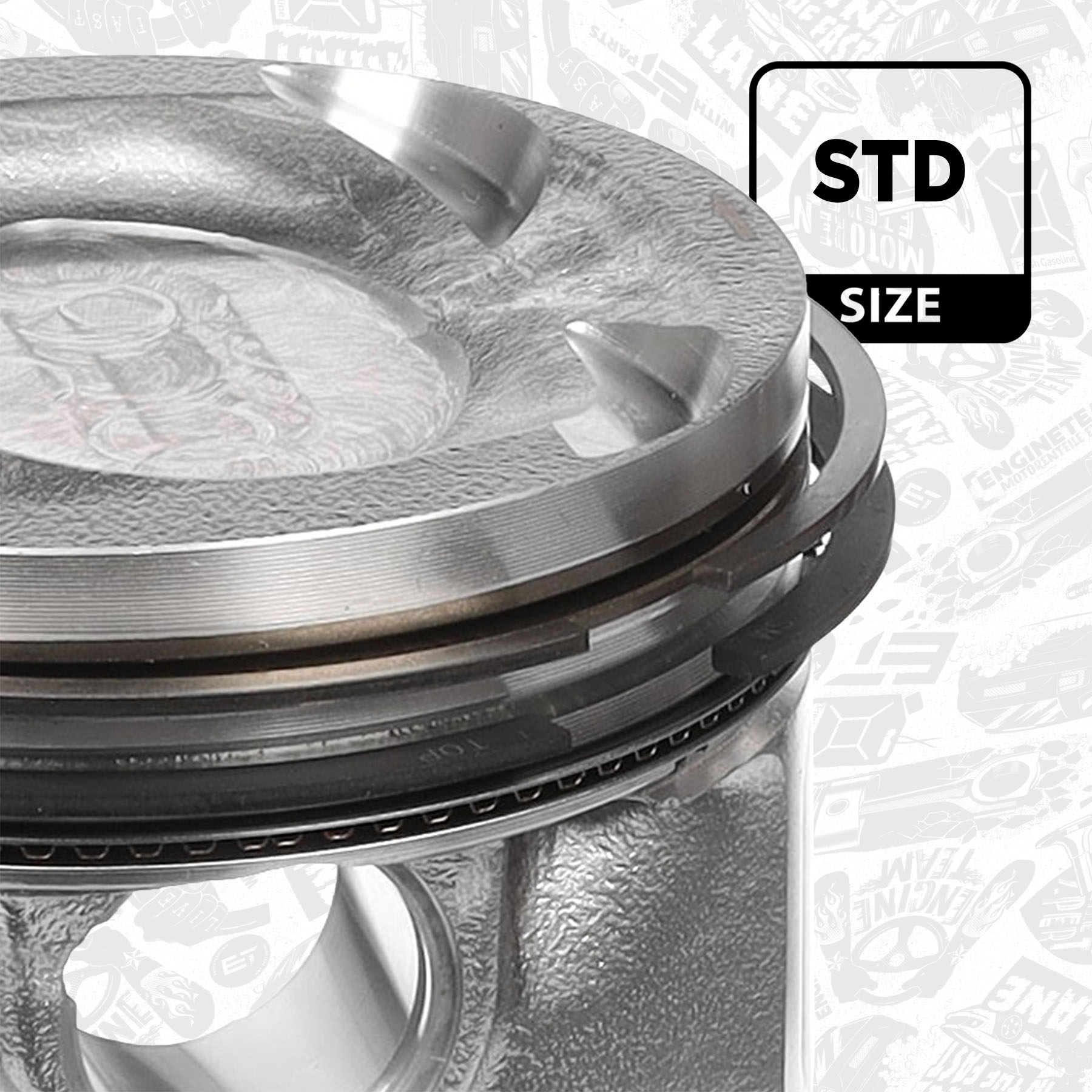

Complete piston ET Engineteam in standard size with 76,51 mm bore. Set includes piston rings 1,2 mm / 1,5 mm / 2,0 mm and bolt with length 54 mm and 19 mm diameter. Suitable for 1,4 TSI / FSI engines of CAVE, CNUB, CNWB, CTHA, CTHE, BMY, BLG types. For VW Touran / Polo / Golf / Jetta, Audi A1, Seat Alhambra / Ibiza, Škoda Fabia II and other cars, manufactured mostly since 2010. OE codes: 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK.

TIP: We also offer piston in oversized dimensions : Oversized piston ET Engineteam PM004950.



Categories

Pistons / liners / rings > Complete piston with rings and pin

Reference Numbers

Show all Show less

Is a part of

PM004900ET - ET ENGINETEAM Piston kit

PM004900ET, Piston kit, ET ENGINETEAM, Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C107065AH, 03C107065BL, 03C107065CE, 03C107065CF, 028PI00117000, 40846600, 87-433900-00

General information

Code:PM004900ET
Brand: ET ENGINETEAM
Title:Piston kit
Car:Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+
Weight  :2,10 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Head Diameter [mm]: 19 mm
Bolt Length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings
Component Number: 4x PM004900
Show all Show less
Stock: > 25 pcs
Detail

PM004900ETVR1 - ET ENGINETEAM Piston Set + conrods

PM004900ETVR1, Piston Set + conrods, ET ENGINETEAM, Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+, 036105701AB, 03C107065AQ, 036105701S, 03C107065AS, 03C105701D, 03C107065BF, 03C107065CK, 03C107065AH, 03C107065BL, 03C107065CE, 03C107065CF, 03C198401A, 03C198401D, 028PI00117000, 40846600, 87-433900-00, 029PS20037000, 50009179, 77836600

General information

Code:PM004900ETVR1
Brand: ET ENGINETEAM
Title:Piston Set + conrods
Car:Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+
Weight  :2,10 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Head Diameter [mm]: 19 mm
Bolt Length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings
Component Number: 4xPM004900
Component Number: 4xOM0051
Component Number: LP004300
Show all Show less
Stock: > 25 pcs
Detail

PM009700ET - ET ENGINETEAM Piston kit

PM009700ET, Piston kit, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H

General information

Code:PM009700ET
Brand: ET ENGINETEAM
Title:Piston kit
Car:Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
Weight  :3,73 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Length [mm]: 54 mm
Bolt Head Diameter [mm]: 19 mm
Supplementary Article/Supplementary Info: with piston rings
Component Number: PM004900
Scope of Supply: includes components ET Engineteam + Elring + Kolbenschmidt
Show all Show less
Stock: > 25 pcs
Detail

PM009700ETVR1 - ET ENGINETEAM Piston Set

PM009700ETVR1, Piston Set, ET ENGINETEAM, Audi VW Skoda Seat A1 Alhambra Ibiza Fabia Golf Passat Jetta Scirocco Polo Touran Sharan 1,4 TSI/TFSI 2010+, 03C107065AQ, 03C198401A, 03C107065AS, 03C198401D, 03C107065BF, 03C107065CK, 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H, 50009179

General information

Code:PM009700ETVR1
Brand: ET ENGINETEAM
Title:Piston Set
Car:Audi VW Skoda Seat A1 Alhambra Ibiza Fabia Golf Passat Jetta Scirocco Polo Touran Sharan 1,4 TSI/TFSI 2010+
Weight  :5,81 kg

Criteria

Full Set: yes
Supplementary Article/Supplementary Info: with cylinder head gasket
Supplementary Article/Info 2: with bolts
Supplementary Article/Supplementary Info: with mounting tool
Component Number: PM004900
Component Number: OM0051
General Information: includes components ET Engineteam + Elring
Show all Show less
Stock: > 25 pcs
Detail

PM009800ET - ET ENGINETEAM Piston kit

PM009800ET, Piston kit, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V CAVA BLG BMY 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H, 03C109571F, 03C109509P, 03C109469K, 03C109469J, 03C109158A, 03C109158, 03C109507Q, 03C109507AH, 03C109507M, 03C109507BA, 03C105159F, 03C105159E, 03C105159C, 03C105159H, 03C109509L, 03C109509M, 03C109469L, 03C109088E, 03C109088B, 03C109088F

General information

Code:PM009800ET
Brand: ET ENGINETEAM
Title:Piston kit
Car:Skoda VW Audi Seat 1,4TFSI 16V CAVA BLG BMY 2010+
Weight  :5,53 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Length [mm]: 48 mm
Bolt Head Diameter [mm]: 19 mm
Supplementary Article/Supplementary Info: with piston rings
Component Number: PM004900
Scope of Supply: includes components ET Engineteam + Elring
Show all Show less
Stock: > 25 pcs
Detail

PM009800ETVR1 - ET ENGINETEAM Piston Set

PM009800ETVR1, Piston Set, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+, 03C107065AQ, 03C198401A, 03C107065AS, 03C198401D, 03C107065BF, 03C107065CK, 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H, 03C109571F, 03C109509P, 03C109469K, 03C109469J, 03C109158A, 03C109158, 03C109507Q, 03C109507AH, 03C109507M, 03C109507BA, 03C105159F, 03C105159E, 03C105159C, 03C105159H, 03C109509L, 03C109509M, 03C109469L, 03C109088E, 03C109088B

General information

Code:PM009800ETVR1
Brand: ET ENGINETEAM
Title:Piston Set
Car:Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+
Weight  :7,61 kg

Criteria

Standard Size [STD]: yes
Cylinder Bore [mm]: 76,5 mm
Compression Height [mm]: 29 mm
Bolt Length [mm]: 48 mm
Bolt Head Diameter [mm]: 19 mm
Supplementary Article/Supplementary Info: with piston rings
Supplementary Article/Supplementary Info: with mounting tool
Component Number: RS0049
General Information: includes components ET Engineteam + Elring
Show all Show less
Stock: 22 pcs
Detail

Alternatives

PM004900ET - ET ENGINETEAM Piston kit

PM004900ET, Piston kit, ET ENGINETEAM, Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C107065AH, 03C107065BL, 03C107065CE, 03C107065CF, 028PI00117000, 40846600, 87-433900-00

General information

Code:PM004900ET
Brand: ET ENGINETEAM
Title:Piston kit
Car:Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+
Weight  :2,10 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Head Diameter [mm]: 19 mm
Bolt Length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings
Component Number: 4x PM004900
Show all Show less
Stock: > 25 pcs
Detail

PM004900KS - ET ENGINETEAM Piston kit

PM004900KS, Piston kit, ET ENGINETEAM, 40846600S VW Beetle Polo, Seat Ibiza, Audi Skoda 1,4 TSI CAVA CTHA BMY 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065BL, 03C107065AH, 03C107065CE, 03C107065CF, 028PI00117000, 40846600, 87-433900-00

General information

Code:PM004900KS
Brand: ET ENGINETEAM
Title:Piston kit
Car:40846600S VW Beetle Polo, Seat Ibiza, Audi Skoda 1,4 TSI CAVA CTHA BMY 2010+
Weight  :2,10 kg

Criteria

Bolt Head Diameter [mm]: 19 mm
Piston Protrusion [mm]: 2 mm
Recess Depth 1 [mm]: 4,57 mm
Valve Pocket Depth 2 [mm]: 1,3 mm
Bolt Length [mm]: 54 mm
Compression Height [mm]: 28,97 mm
Supplementary Article/Supplementary Info: with piston rings
Standard Size [STD]: yes
Cylinder Bore [mm]: 76,51 mm
Component Number: 4x 40846600
General Information: Includes components from Kolbenschmidt + Elring
Show all Show less
Stock: 0 pcs
Detail
