Code: PM009700ET |
Title: Piston kit
Piston kit - PM009700ET ET ENGINETEAM - 03C107065AQ, 03C107065AS, 03C107065BF
Car: Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
| Cylinder Bore [mm]: | 76,5 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29 mm |
| Bolt Length [mm]: | 54 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | PM004900 |
| Scope of Supply: |
includes components ET Engineteam + Elring + Kolbenschmidt includes components ET Engineteam + Elring + Kolbenschmidt [Show less] |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779027354

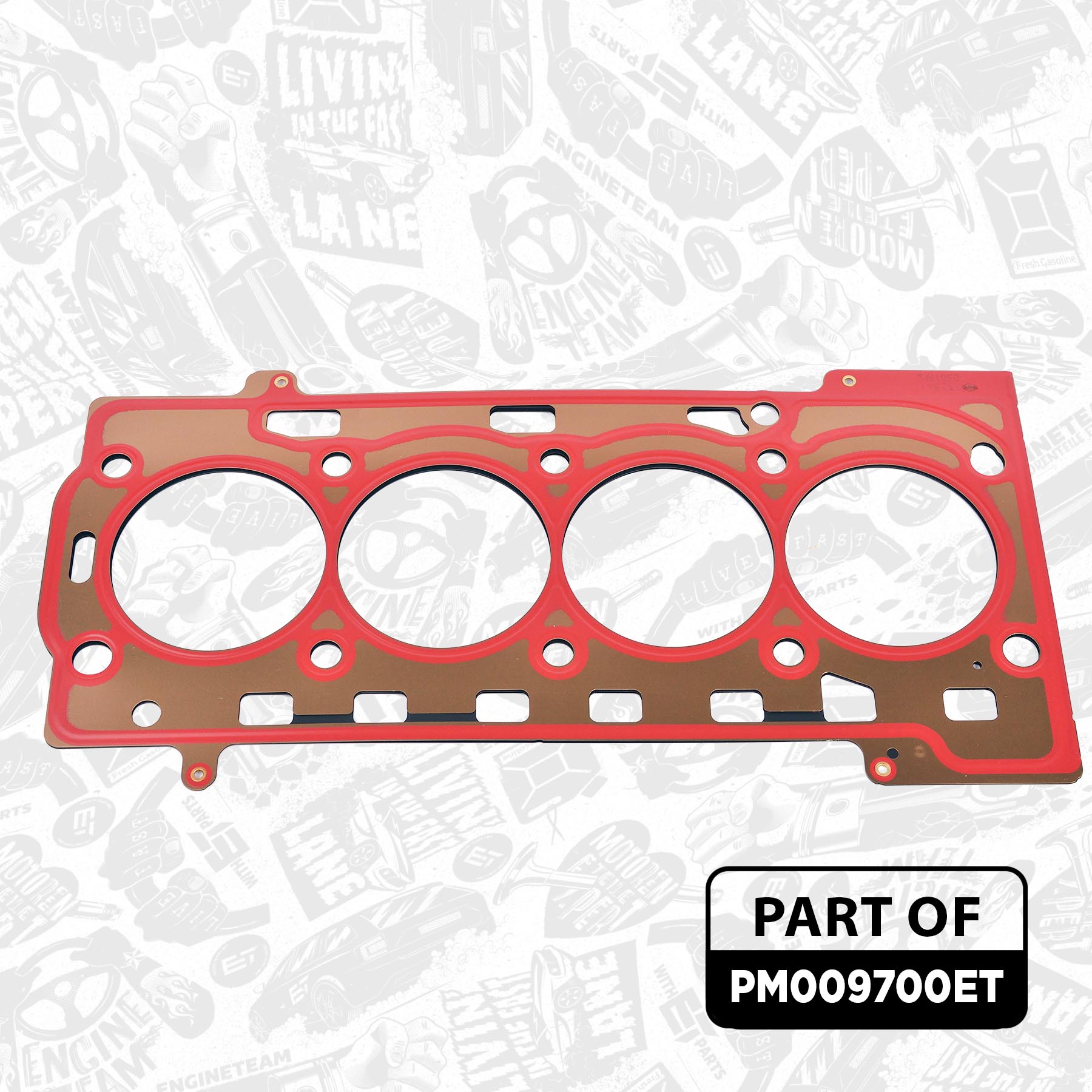

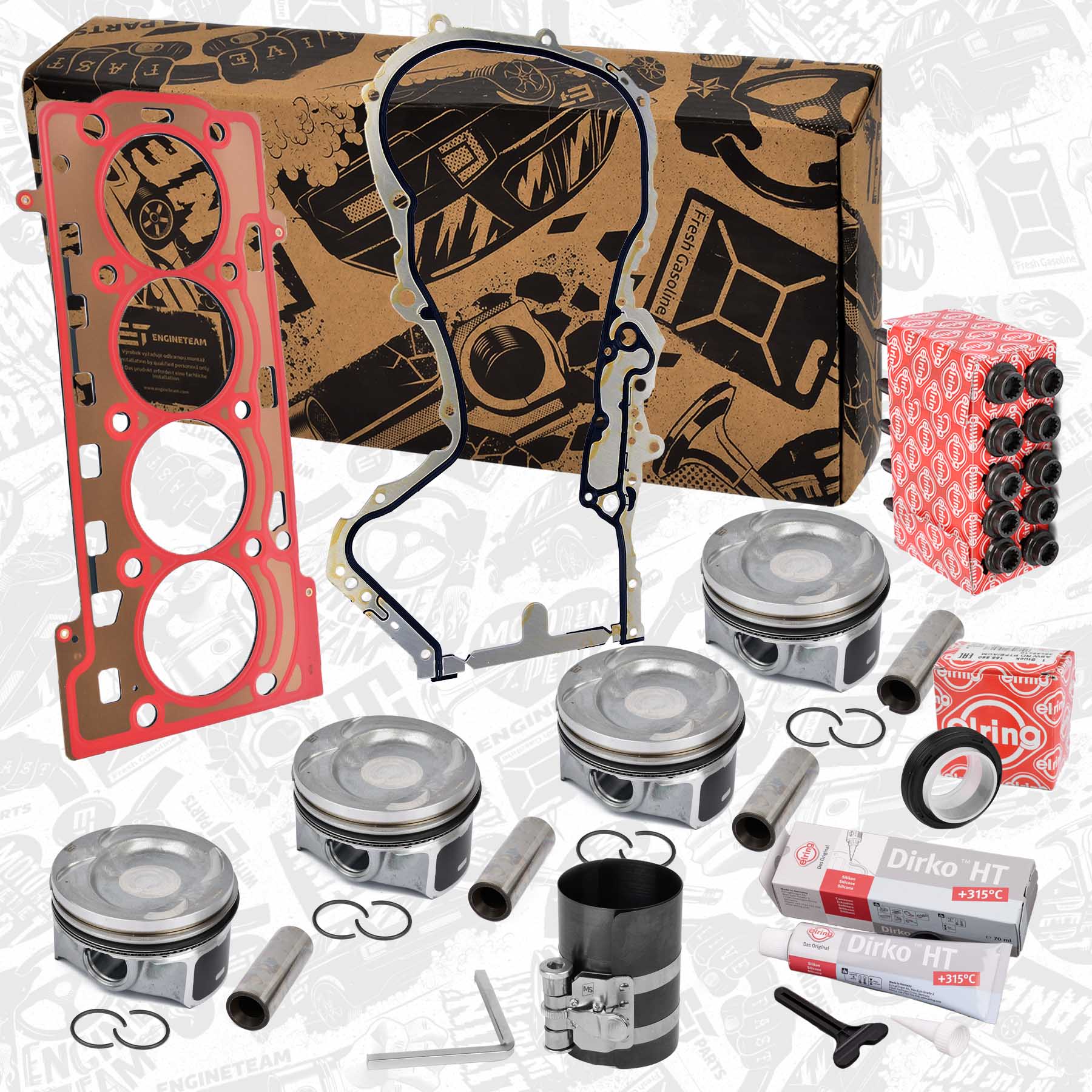

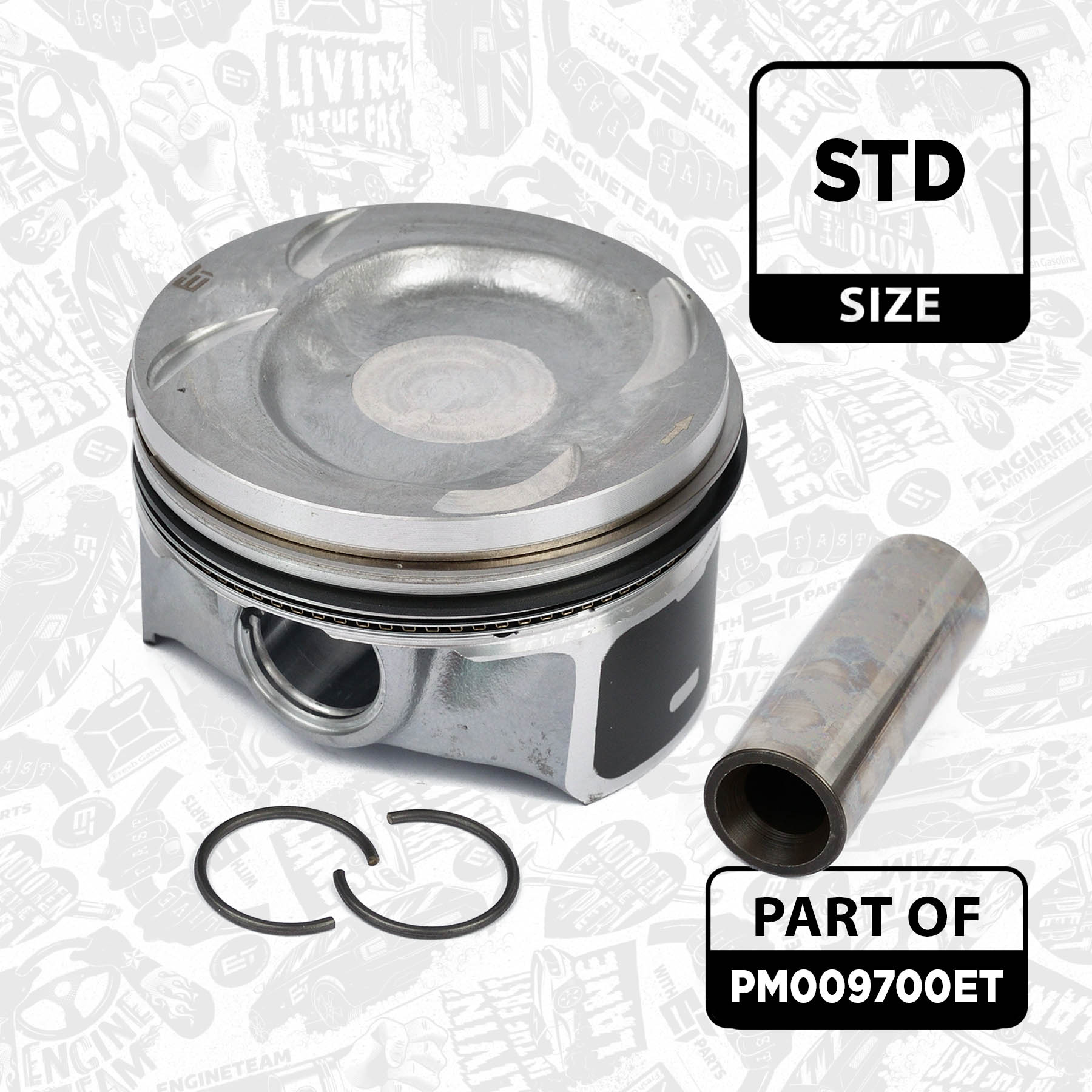

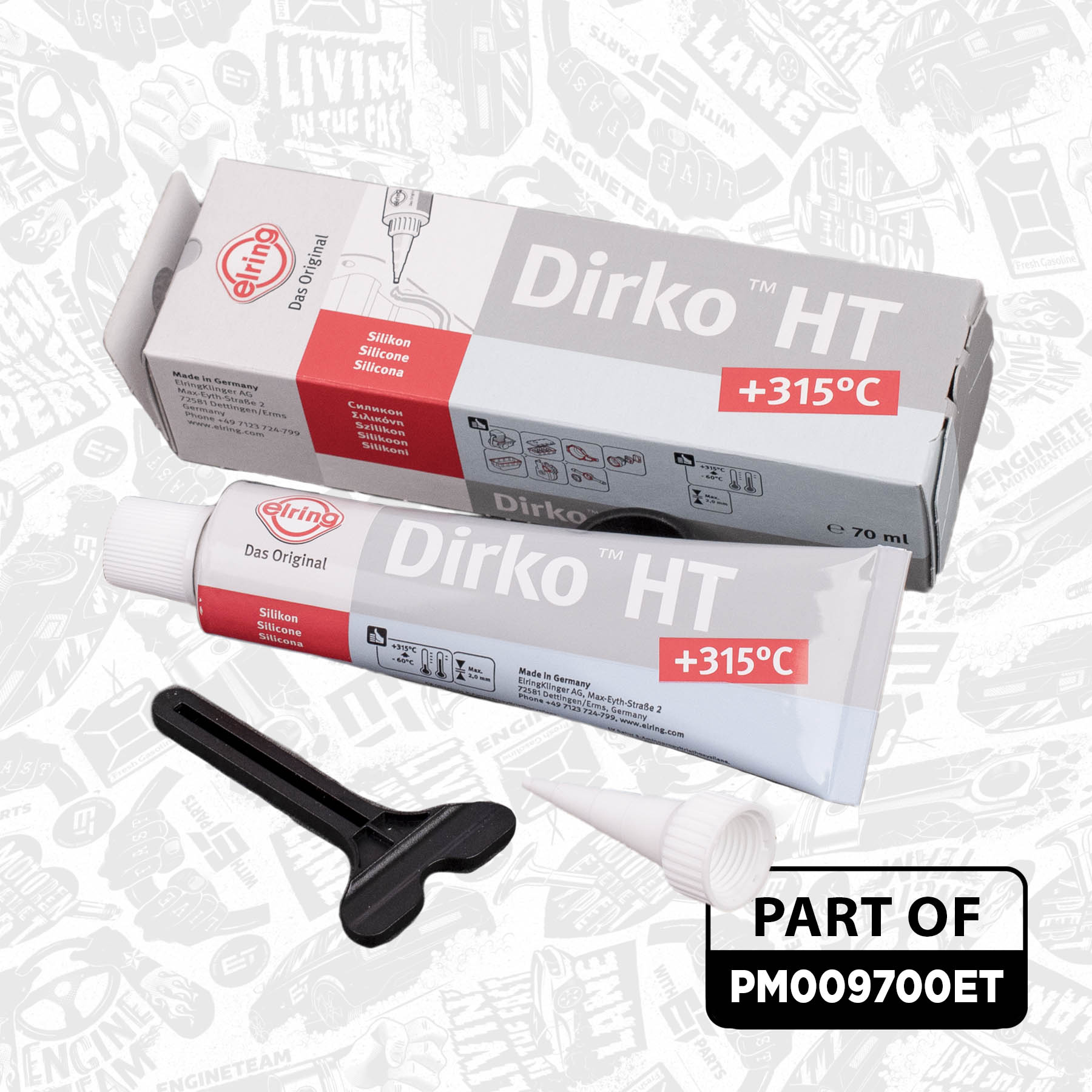

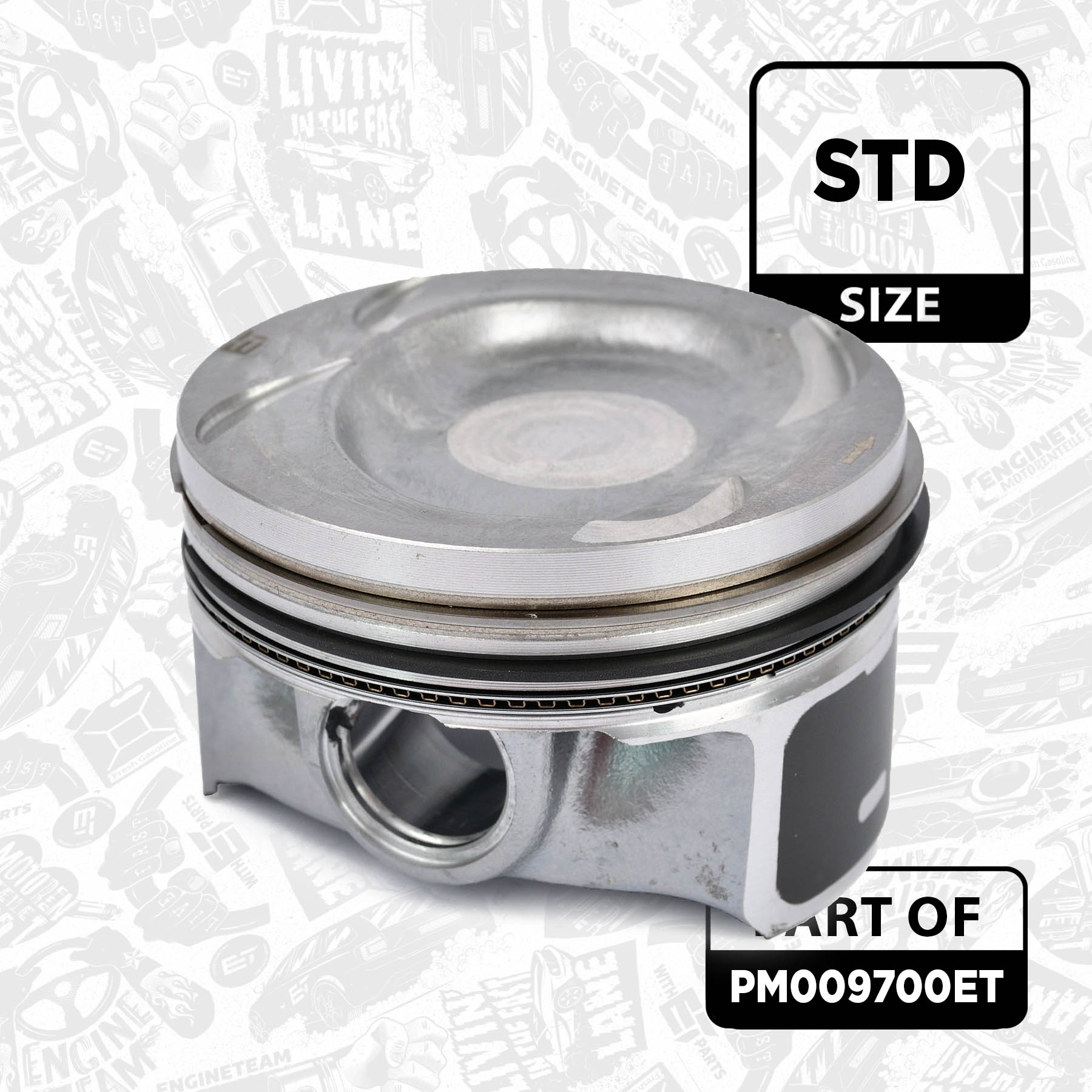

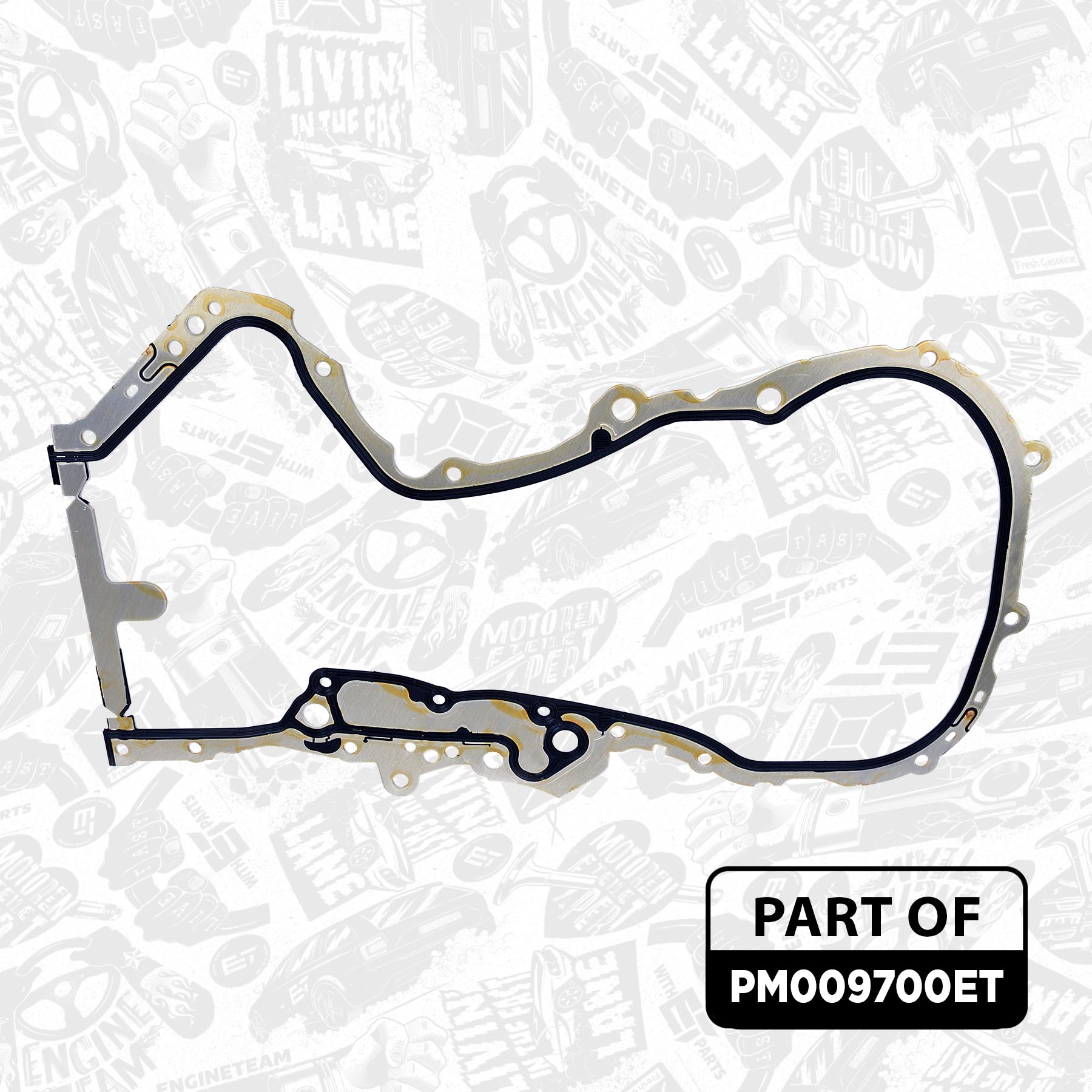

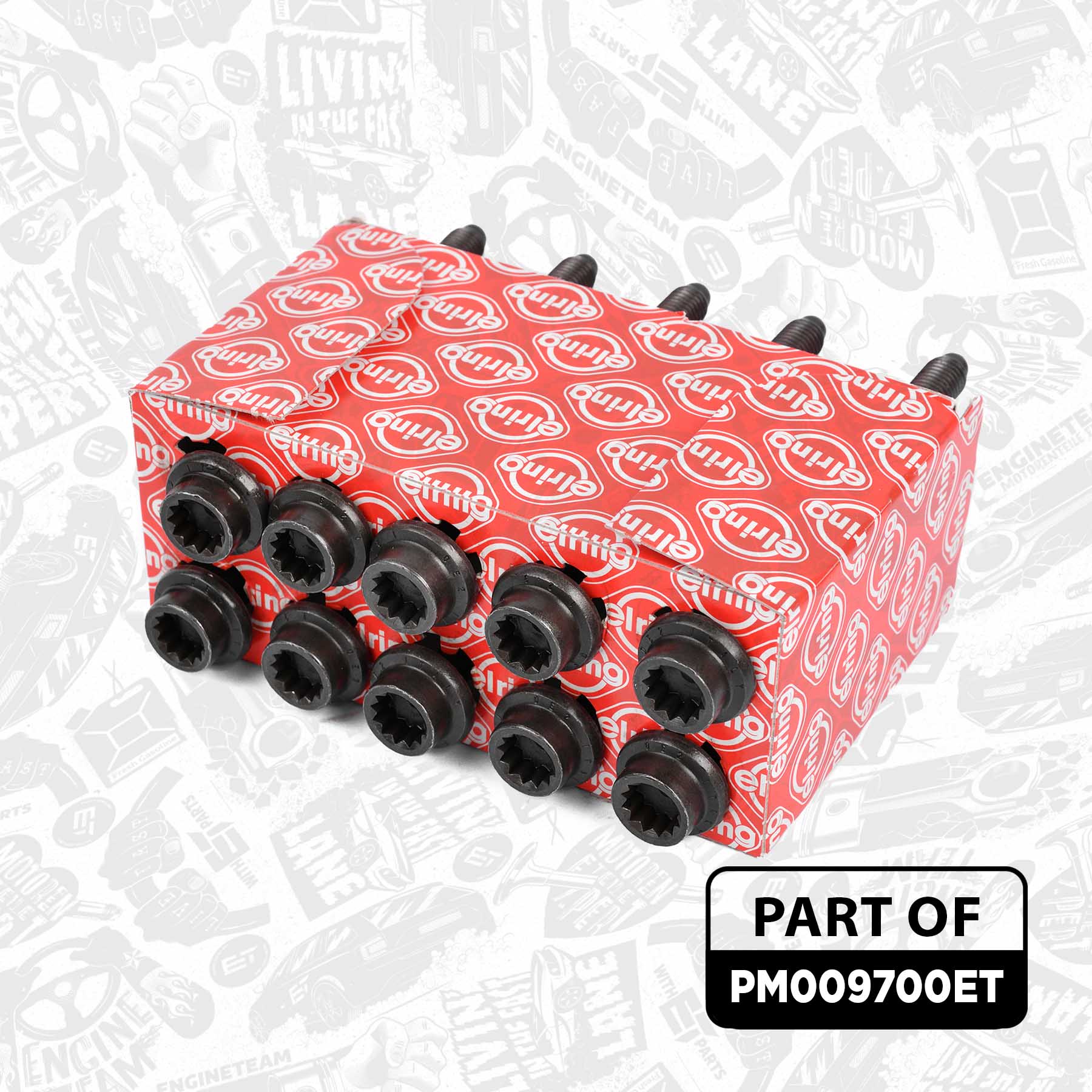

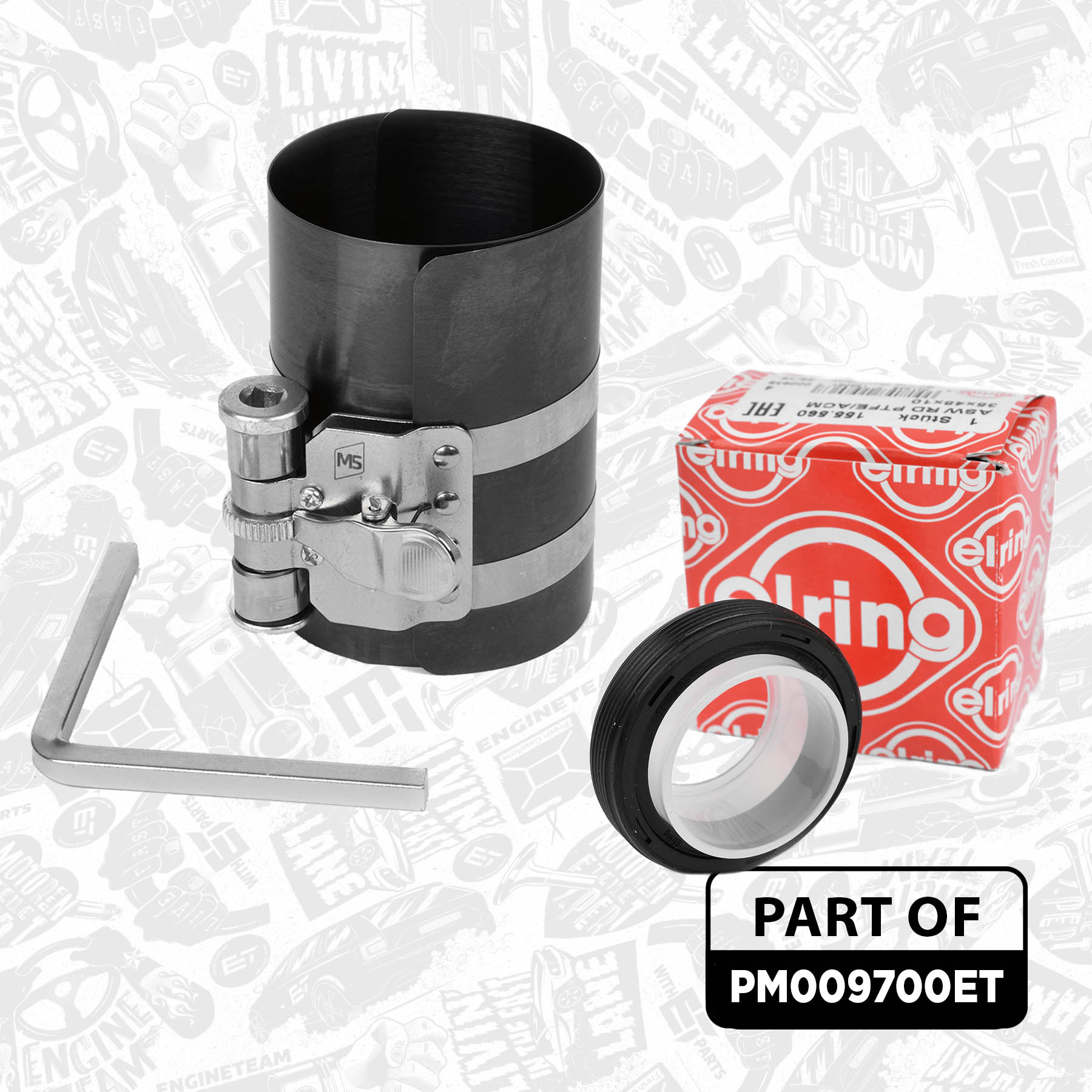

Complete piston repair kit with ET Engineteam and Elring components. This kit contains 4x piston ET Engineteam PM004900, 1x cylinder head gasket 732.841, 1x timing chain gasket 092.750, 1x kit of cylinder head bolts 730.300, 1x cylinder head covering gasket DIRKO 036.163, 1x gufero (camshaft gasket) 155.560, 1x mounting tool for PKW 120000416353. This kit is designed for Audi A1, Seat Alhambra / Ibiza IV, Škoda Fabia II , Volkswagen Touran / Tiguan / Golf / Eos / Beetle and other cars made since the year 2004. This kit can be also used for cars with engines of codes: BLG, BMY, CAVA, CAVE, CTHA, CTJB, CTKA, CNWA, CAVG.
TIP: We also offer repair kit PM009800ET, which contains timing chain kit RS0049.
Reference Numbers
- VW/SEAT # 03C 107 065 AQ
- VW/SEAT # 03C107065AQ
- VW/SEAT # 03C 107 065 AS
- VW/SEAT # 03C107065AS
- VW/SEAT # 03C 107 065 BF
- VW/SEAT # 03C107065BF
- VW/SEAT # 03C 107 065 CK
- VW/SEAT # 03C107065CK
- VW/SEAT # 03C 107 065AQ
- VW/SEAT # 03C 107 065AS
- VW/SEAT # 03C 107 065BF
- VW/SEAT # 03C 107 065CK
- VW/SEAT # 03C 103 383 AE
- VW/SEAT # 03C103383AE
- VW/SEAT # 03C 103 383 AH
- VW/SEAT # 03C103383AH
- VW/SEAT # 03C 103 383AE
- VW/SEAT # 03C 103 383AH
- VW/SEAT # 03C 109 287F
- VW/SEAT # 03C109287F
- VW/SEAT # 03C 109 287G
- VW/SEAT # 03C109287G
- VW/SEAT # 03C 109 287H
- VW/SEAT # 03C109287H
- ET ENGINETEAM # PM009700ET
Parts list
General information
| Code: | PM004900 |
| Brand: | ET ENGINETEAM |

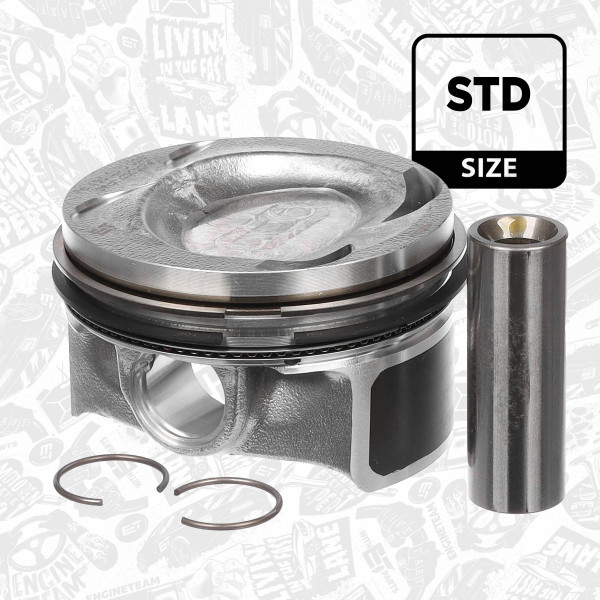

| Title: | Piston with rings and pin |
| Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
| Weight : | 0,40 kg |
Criteria
| Cylinder Bore [mm]: | 76,5 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 54 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
Alternatives
General information

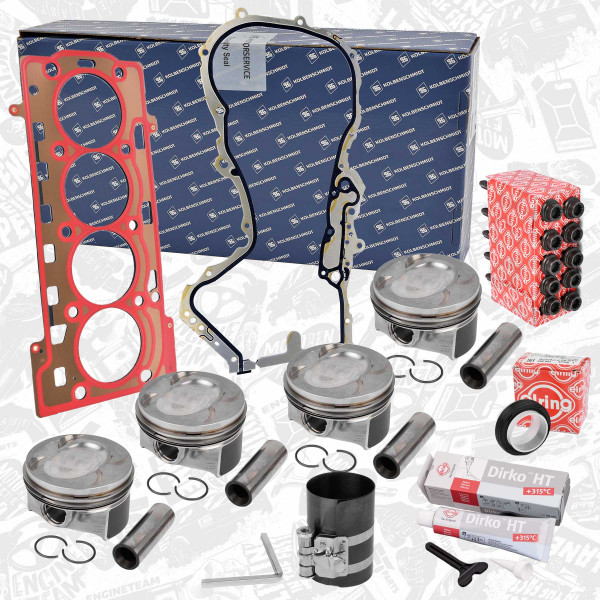

| Code: | PM009700KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
| Weight : | 3,73 kg |
Criteria
| Cylinder Bore [mm]: | 76,5 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29 mm |
| Bolt Length [mm]: | 54 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 40846600 |
| General Information: | Includes components from Kolbenschmidt + Elring |
