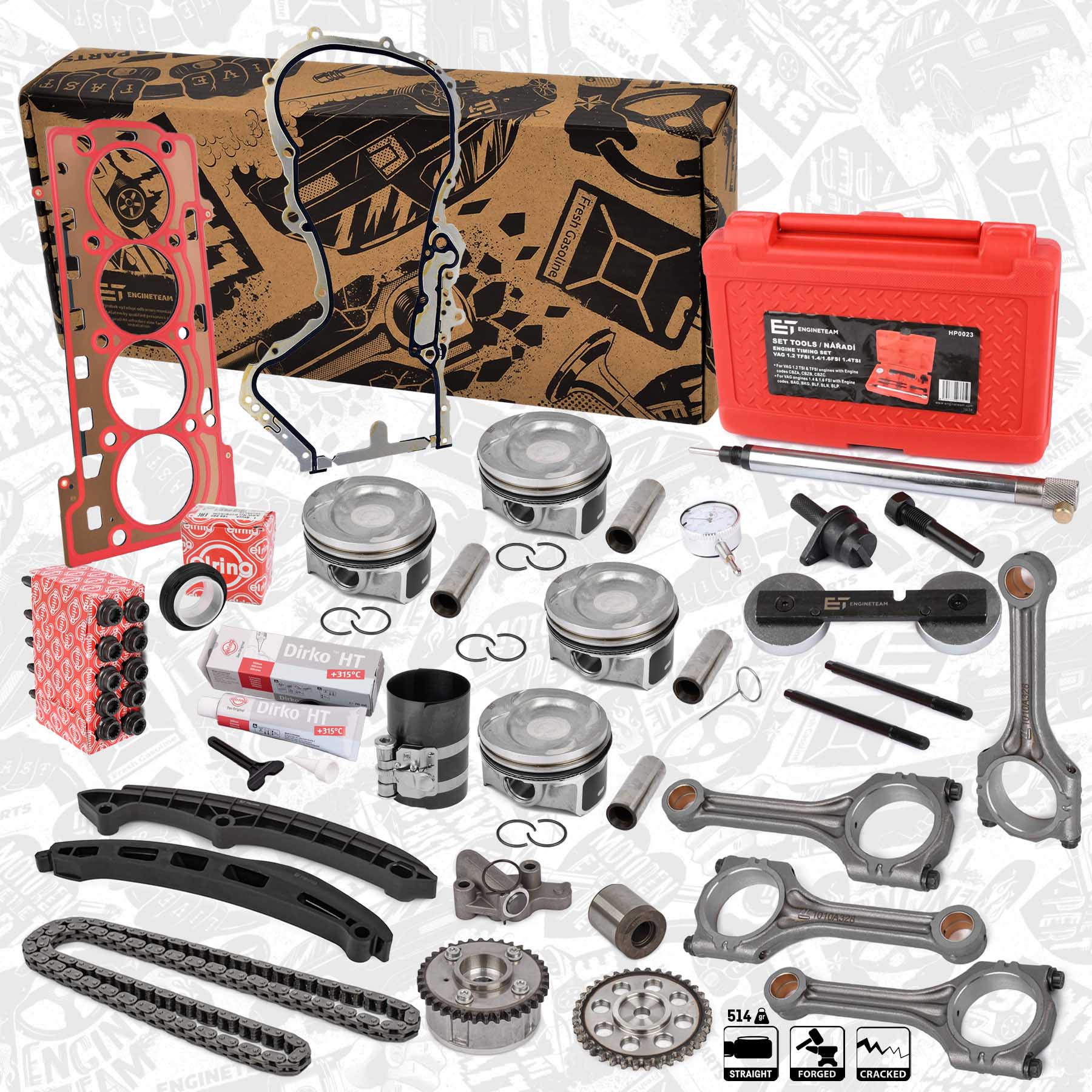

• PM009800ETVR1 - Piston Set ET ENGINETEAM
Code: PM009800ETVR1   |    Title: Piston Set

Piston Set - PM009800ETVR1 ET ENGINETEAM - 03C107065AQ, 03C198401A, 03C107065AS

Car: Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+
Piston Set - PM009800ETVR1 ET ENGINETEAM - 03C107065AQ, 03C198401A, 03C107065AS
Standard Size [STD]: yes
Cylinder Bore [mm]: 76,5 mm
Compression Height [mm]: 29 mm
Bolt Length [mm]: 48 mm
Bolt Head Diameter [mm]: 19 mm
Supplementary Article/Supplementary Info: with piston rings

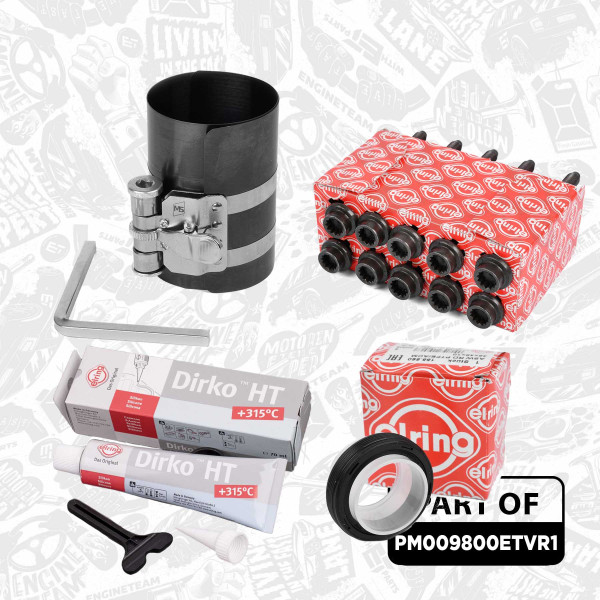

Supplementary Article/Supplementary Info: with mounting tool
Component Number: RS0049
General Information:

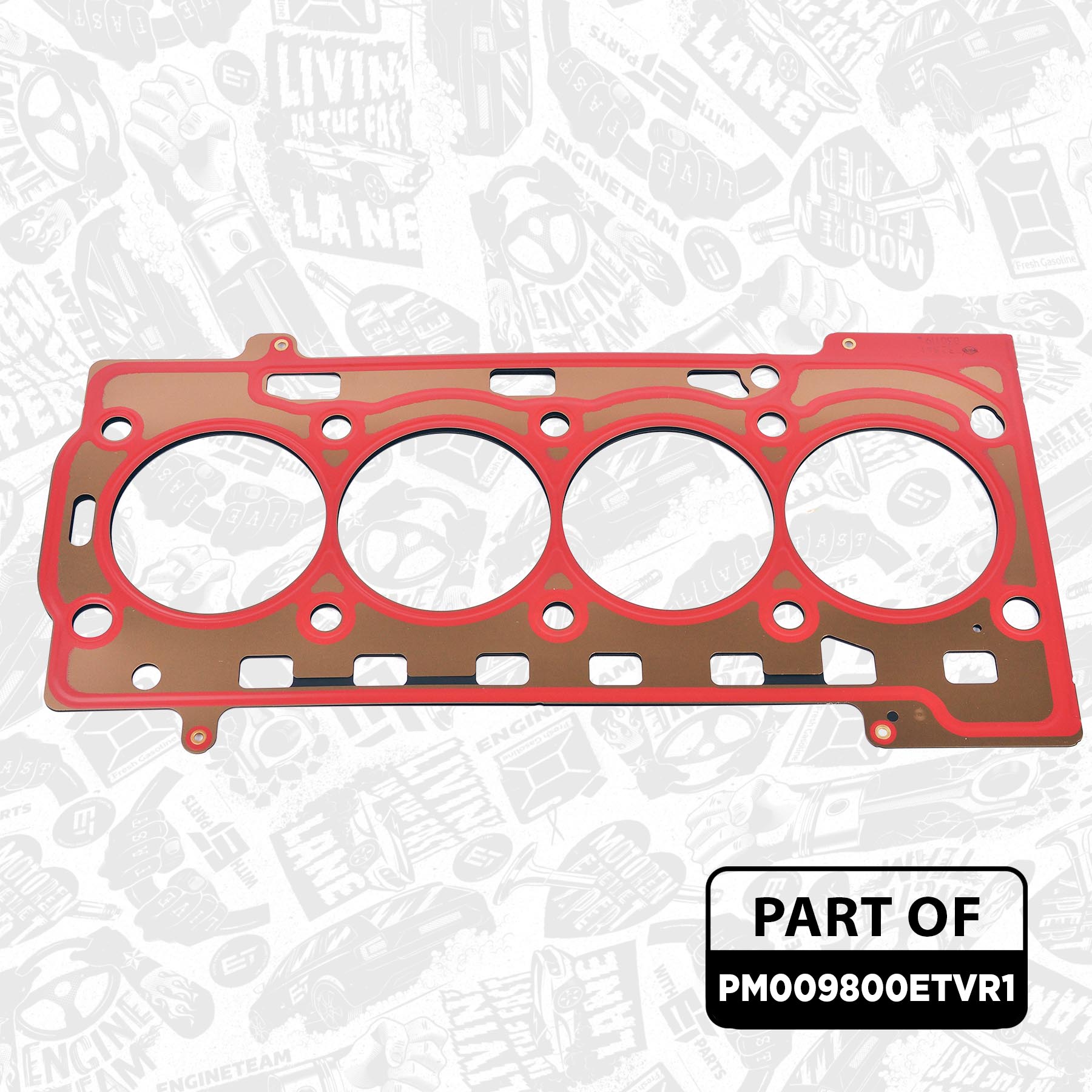

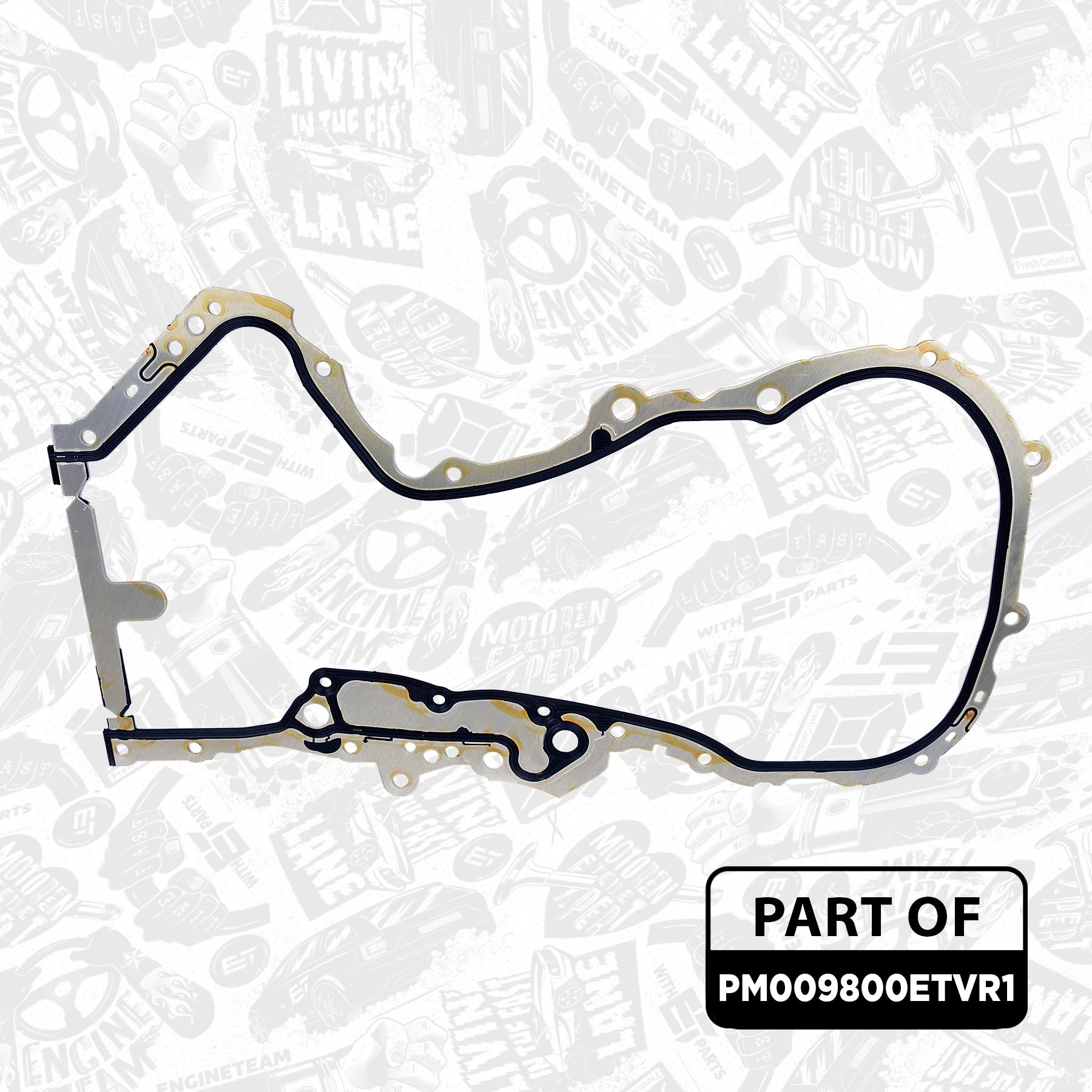

includes components ET Engineteam + Elring
includes components ET Engineteam + Elring [Show less]
Stock: 8 pcs
Where to buy?

EAN: 8592779048014

Unfortunately, there is no additional description available for this product.

Categories

Pistons / liners / rings > Repair set - complete piston with rings and pin (for 1 engine)

Reference Numbers

Show all Show less

Parts list

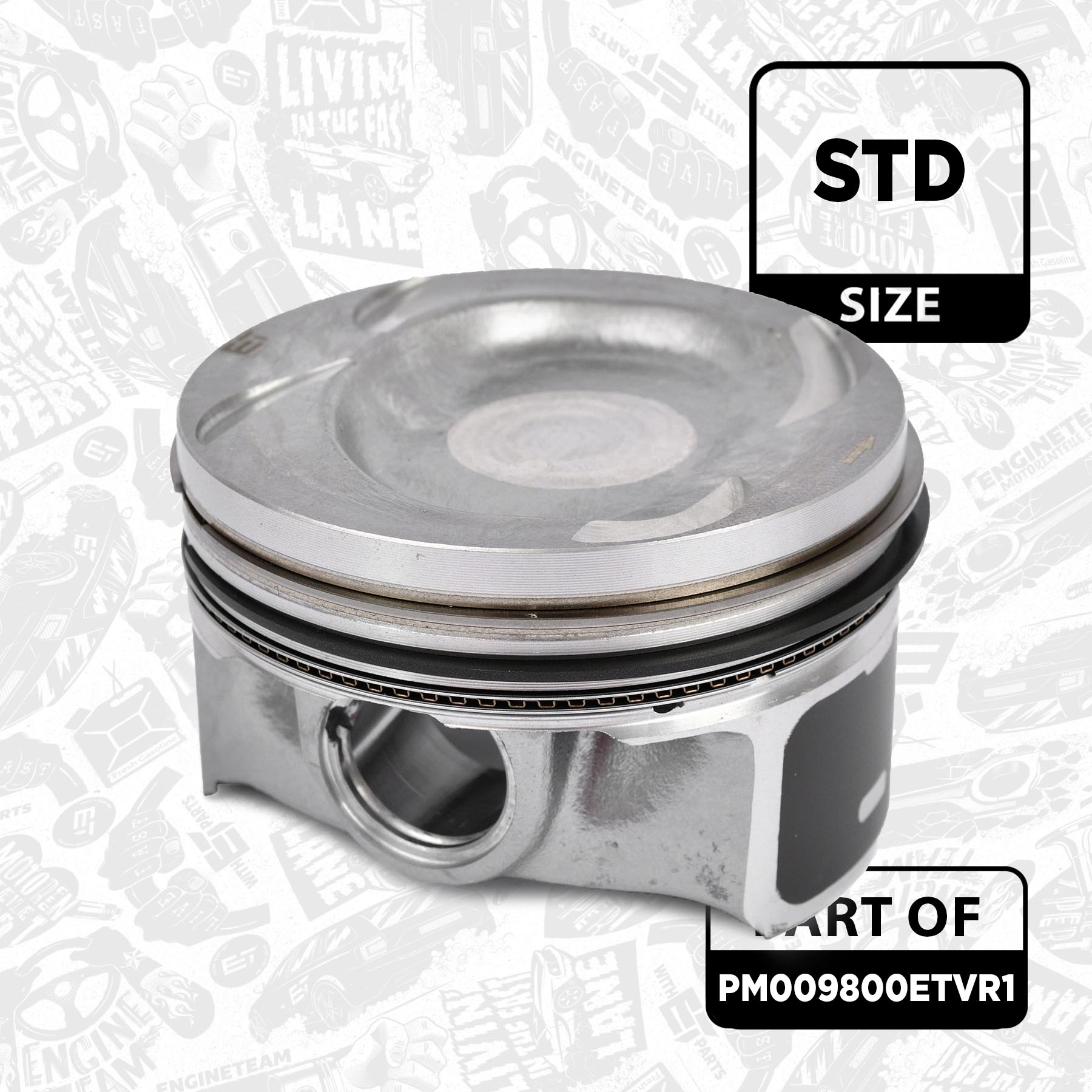

PM004900 - ET ENGINETEAM Piston with rings and pin

PM004900, Piston with rings and pin, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C107065AH, 03C107065BL, 03C107065CE, 03C107065CF, 028PI00117000, 40846600, 87-433900-00, 87-433900-10

General information

Code:PM004900
Brand: ET ENGINETEAM
Title:Piston with rings and pin
Car:Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
Weight  :0,40 kg

Criteria

Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]: yes
Compression Height [mm]: 29 mm
Bolt Head Diameter [mm]: 19 mm
Bolt Length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings
Stock: > 25 pcs
Detail

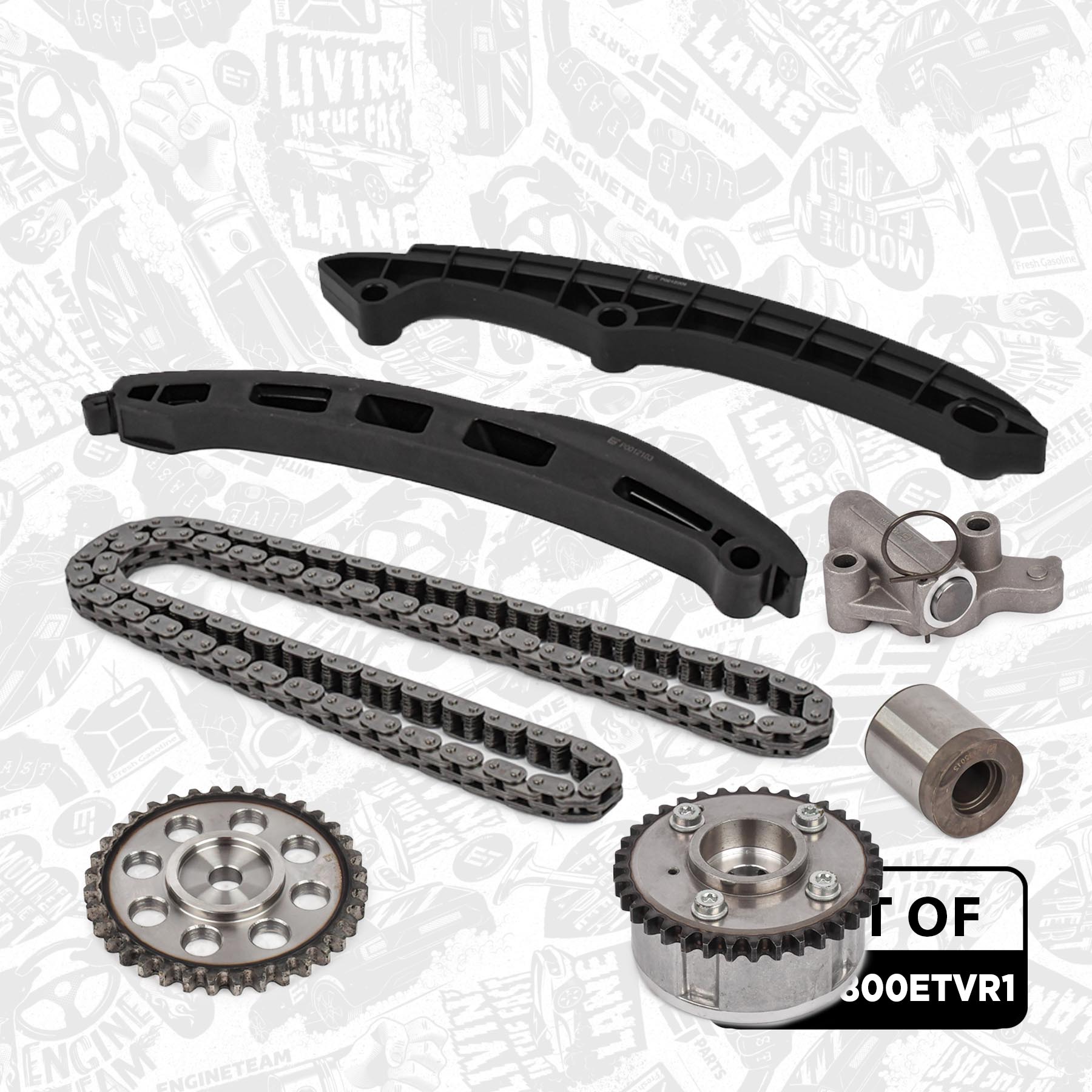

RS0049 - ET ENGINETEAM Timing Chain Kit

RS0049, Timing Chain Kit, ET ENGINETEAM, Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+, 03C109571F, 03C109509P, 03C109469K, 03C109469J, 03C109158A, 03C109158, 03C109507Q, 03C109507AH, 03C109507M, 03C109507BA, 03C105159F, 03C105159E, 03C105159C, 03C105159H, 03C109509L, 03C109509M, 03C109469L, 03C109088E, 03C109088B, 03C109088F

General information

Code:RS0049
Brand: ET ENGINETEAM
Title:Timing Chain Kit
Car:Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+
Weight  :1,80 kg

Criteria

Supplementary Article/Supplementary Info: with gears
Number of chain links: 130
Chain Type: Silent Chain
Stock: 8 pcs
Detail

HP0009 - ET ENGINETEAM Piston Ring Compressor

HP0009, Piston Ring Compressor, ET ENGINETEAM, 120000416353, 50009816

General information

Code:HP0009
Brand: ET ENGINETEAM
Title:Piston Ring Compressor
Weight  :0,38 kg

Criteria

Diameter up to [mm]: 125 mm
Stock: 22 pcs
Detail

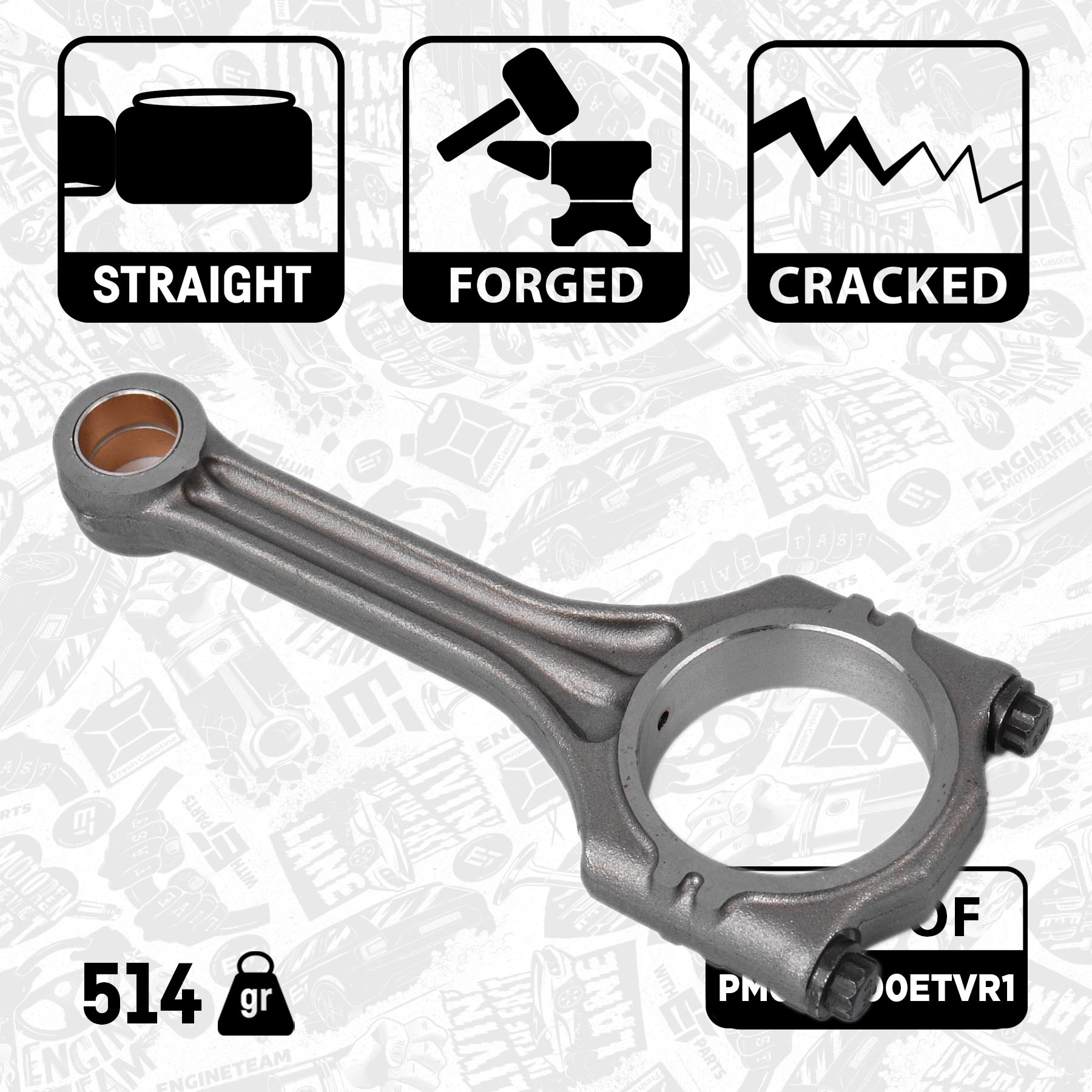

OM0051 - ET ENGINETEAM Connecting Rod

OM0051, Connecting Rod, ET ENGINETEAM, Audi Seat Skoda VW A1 A3 Altea Leon Toledo Fabia Rapid Eos Golf BLG BMY CAXA 1,4 TSI 2007+, 03C198401A, 03C198401D, 50009179

General information

Code:OM0051
Brand: ET ENGINETEAM
Title:Connecting Rod
Car:Audi Seat Skoda VW A1 A3 Altea Leon Toledo Fabia Rapid Eos Golf BLG BMY CAXA 1,4 TSI 2007+
Weight  :0,52 kg

Criteria

Hole Spacing [mm]: 109,2 mm
Tightening Torque [Nm]: 50 Nm
Machining: Forged
Machining: cracked
Connecting Rod Design: Parallel Connecting Rod
Pin Diameter [mm]: 19 mm
Weight [g]: 514 g
Show all Show less
Stock: > 25 pcs
Detail

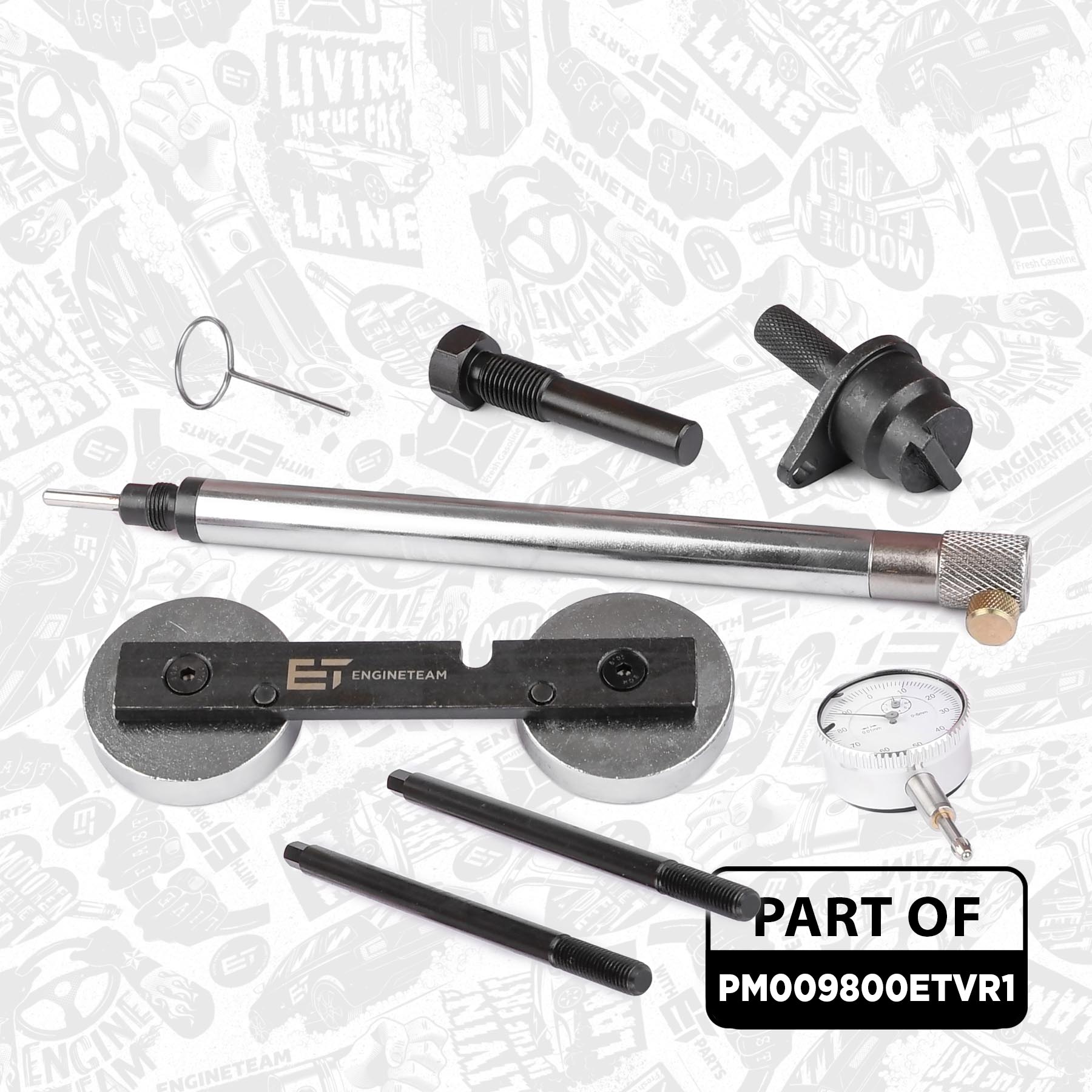

HP0023 - ET ENGINETEAM Tool Set, timing chain

HP0023, Tool Set, timing chain, ET ENGINETEAM, Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+, 3313, T10170, T10170/A/1, T10171, T10171A, T10340, T10414, T40011, VAS6079, T10341

General information

Code:HP0023
Brand: ET ENGINETEAM
Title:Tool Set, timing chain
Car:Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+
Weight  :1,85 kg

Criteria

Gauge: with dial gauge
Number of Parts [parts]: 8 -part
Stock: 12 pcs
Detail
