Code: RS0106VR4 |
Title: Timing Chain Kit
Timing Chain Kit - RS0106VR4 ET ENGINETEAM - 03F198158B, 03F198158, 03F198158A
Car: Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+
| Chain Type: | Closed chain |
| Chain Type: | Silent Chain |
| Number of Teeth: | 40 |
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Supplementary Article/Supplementary Info: | with mounting tool |
| Number of chains: | 2 |
| Scope of Supply: |
includes components ET Engineteam + Elring includes components ET Engineteam + Elring [Show less] |
Where to buy?
EAN: 8592779034345
ET Engineteam advanced timing chain kit for CBZA and CBZB engines. Contains sealing compound, housing cleaner, complete pistons, valves, cylinder head bolts, cylinder head gasket, piston mounting tool, oil pump, oil pump chain and timing adjustment tools. Suitable, for example, for Audi A1 / A3, Seat Altea / Ibiza / Leon / Toledo, Škoda Fabia / Octavia / Rapid / Roomster, VW Beetle / Golf / Jetta / Touran 1.2 TSI manufactured since 2008.

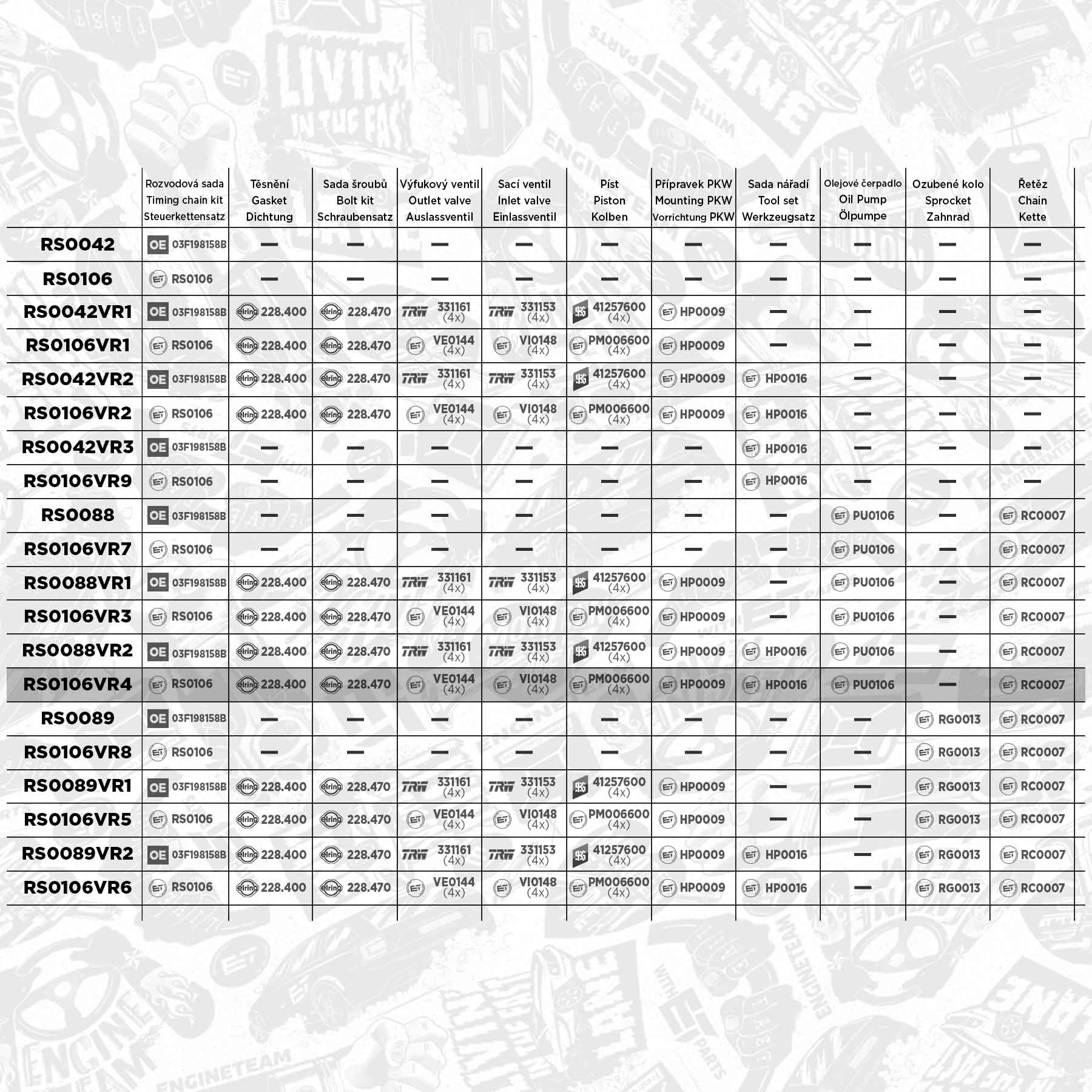

TIP: In our range, you can find timing chain kits with different contents. An overview of all the kits can be found HERE.

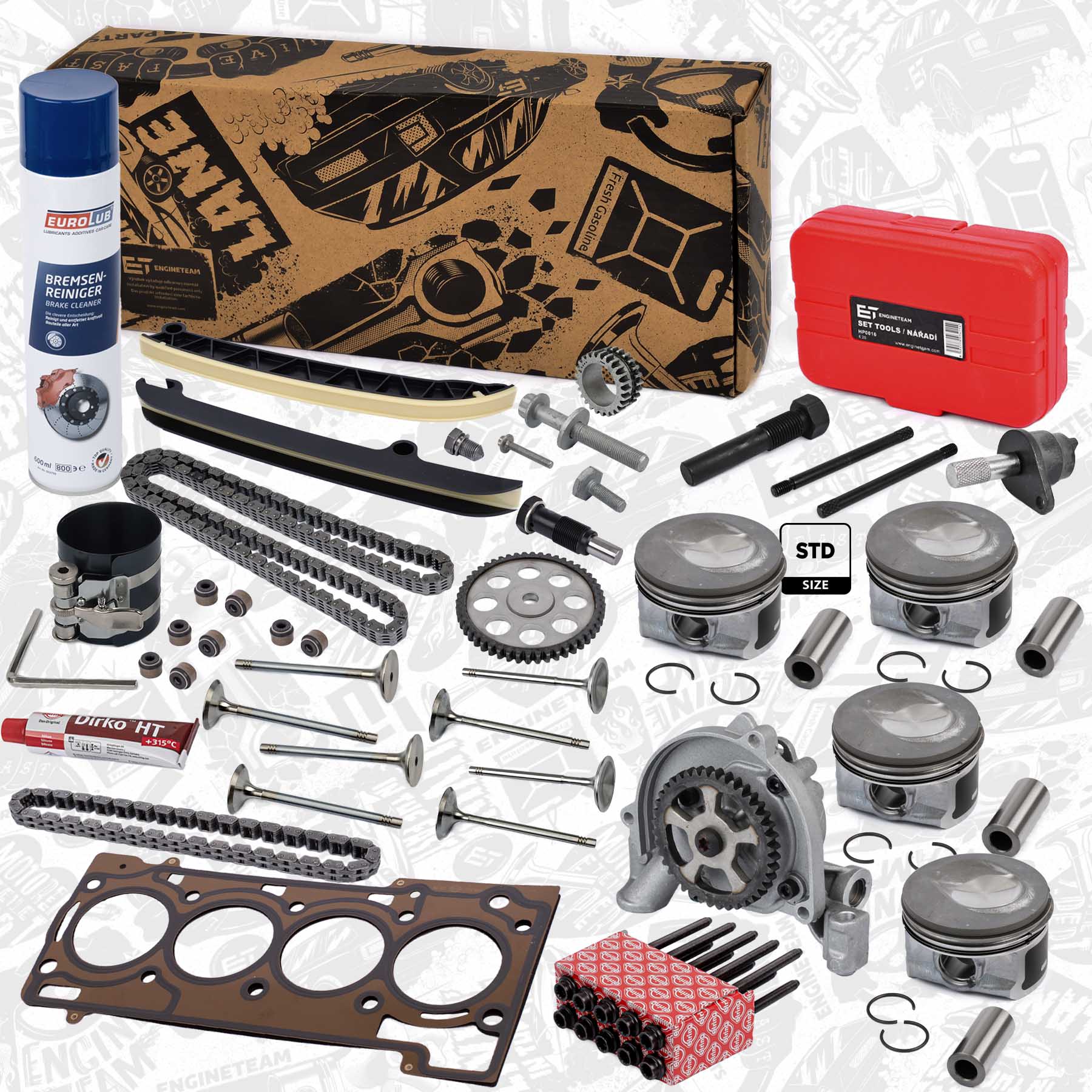

Contents of kit RS0106VR4:

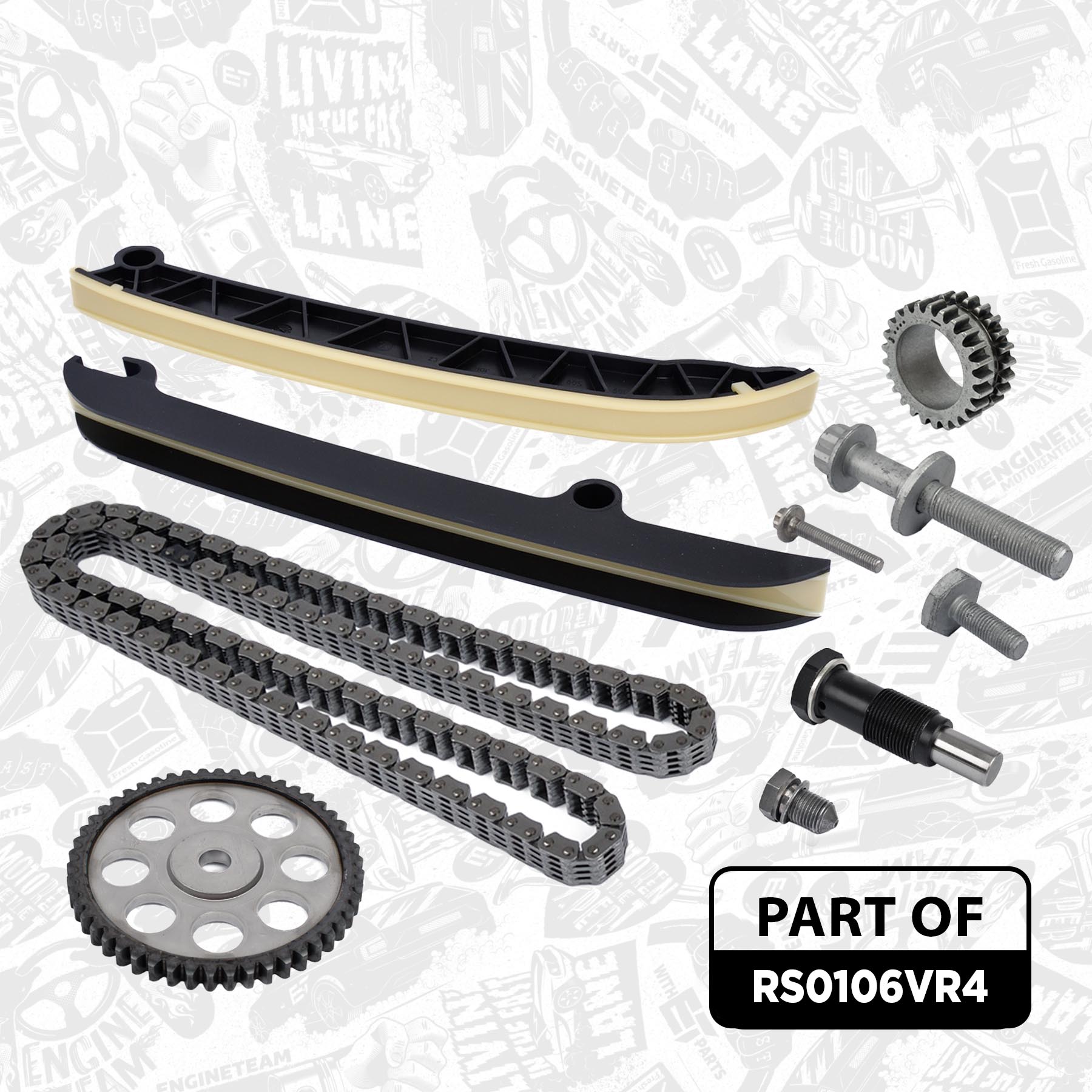

- Timing chain kit RS0106
- Oil pump ET Engineteam PU0106
- Oil pump chain ET Engineteam RC0007
- 4x complete piston PM006600
- Cylinder head gasket Elring 228.400
- Cylinder head bolt kit Elring 228.470 (10 pcs)
- 4x exhaust valve VE0144
- 4x inlet valve VI0148
- 8x valve stem seal Elring 724.590
- Mounting device PKW ET Engineteam HP0009
- Sealing compound Elring 705.708
- Cleaner HUNOLD EU003799
- Timing adjustment tools HP0016
Documents
Categories
Reference Numbers
- VW # 03F198158B
- VW # 03F198158
- VW # 03F198158A
- VW # 03F198229A
- VW # 03F 198 158 B
- VW # 03F 198 158
- VW # 03F 198 158 A
- VW # 03F 198 229 A
- VW # 03F109158G
- VW # 03F 109 158 G
- VW # 03F105209G
- VW # 03F 105 209 G
- VW # 03F109469E
- VW # 03F 109 469 E
- VW # 03F109509F
- VW # 03F 109 509 F
- VW # 03F109571F
- VW # 03F 109 571 F
- VW # 03F109507F
- VW # 03F 109 507 F
- VW # 03F109158J
- VW # 03F 109 158 J
- VW # 03F115225
- VW # 03F 115 225
- VW # 03F115105D
- VW # 03F 115 105D
- VW # 03F 115 105 D
- VW # N10734501
- VW # N10734401
- VW # N90813202
- VW # WHT004724
- VW # 03F 107 065 F
- VW # 03F107065F
- VW # 03F 107 065F
- VW # 03F 107 065 G
- VW # 03F107065G
- VW # 03F107065A
- VW # 03F 107 065 A
- VW # 03F107065D
- VW # 03F 107 065 D
- VW # 03F 103 383 E
- VW # 03F 103 383E
- VW # 03F103383E
- VW # WHT 004 790
- VW # 03F109611B
- VW # 03F109611C
- VW # 03F 109 611 B
- VW # 03F 109 611 C
- VW # 03F109601A
- VW # 03F 109 601 A
- VW # 06B 109 675 B
- VW # 06K 109 675
- VW # 036 109 675 A
- VW # 06J 105 675
- VW # T10340
- VW # T10414
- VW # T10341
- VW # 03F 109 158 K
- VW # 03F 109 158K
- VW # 03F109158K
- VW # 03F109507B
- VW # WHT004068
- VW # 03F109509C
- VW # 03F 109 509C
- VW # 03F 109 509 C
- VW # WHT 004 068
- VW # WHT 004 069
- VW # WHT004069
- VW # 03F 109 469 C
- VW # 03F 109 469C
- VW # 03F109469C
- ET ENGINETEAM # RS0106VR4
Parts list
General information
| Code: | PU0106 |
| Brand: | ET ENGINETEAM |
| Title: | Oil Pump |
| Car: | Audi A1, Skoda Fabia Rapid Yeti Roomster, VW Cady Golf CBZA CBZB 2011+ |
| Weight : | 1,40 kg |
General information
| Code: | RC0007 |
| Brand: | ET ENGINETEAM |
| Title: | Chain, oil pump drive |
| Car: | Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+ |
| Weight : | 0,20 kg |
Criteria
| Chain Type: | Silent Chain |
| Number of chain links: | 70 |
| Chain Type: | Closed chain |
| Stock: | 2 pcs |
General information
| Code: | PM006600 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+ |
| Weight : | 0,20 kg |
Criteria
| Cylinder Bore [mm]: | 71 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 42 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Bolt Head Diameter [mm]: | 19 mm |
| Stock: | > 25 pcs |
General information
| Code: | VE0144 |
| Brand: | ET ENGINETEAM |
| Title: | Exhaust Valve |
| Car: | Skoda VW Audi Seat 1,2TSI/TFSI 2009+ |
| Weight : | 0,06 kg |
Criteria
| Valve Head Diameter [mm]: | 30 mm |
| Valve Stem Diameter [mm]: | 6 mm |
| Length [mm]: | 98,3 mm |
| Valve seat angle [°]: | 45 ° |
| Material: | Chrome-Mangan-Nickel Steel |
| Supplementary Article/Info 2: | Chromed valve stem |
| Fitting Position: | Exhaust Side |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | VI0148 |
| Brand: | ET ENGINETEAM |
| Title: | Intake Valve |
| Car: | ŠKODA-VW |
| Weight : | 0,06 kg |
Criteria
| Valve Head Diameter [mm]: | 35,5 mm |
| Valve Stem Diameter [mm]: | 6 mm |
| Length [mm]: | 98,7 mm |
| Valve seat angle [°]: | 45 ° |
| Material: | Chrome-silicon-steel |
| Supplementary Article/Info 2: | Valve stem tip hardened |
| Fitting Position: | Intake Side |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
General information
| Code: | HP0016 |
| Brand: | ET ENGINETEAM |
| Title: | Adjustment Tool Kit, valve timing |
| Car: | Audi VW Seat Skoda A3 Ibiza Toledo Octavia Rapid Golf Touran 1,2 TFSI |
| Weight : | 0,46 kg |
| Stock: | 17 pcs |
Alternatives
General information
| Code: | RS0088VR2 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Car: | Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+ |
| Weight : | 7,43 kg |
Criteria
| Chain Type: | Closed chain |
| Chain Type: | Silent Chain |
| Number of Teeth: | 40 |
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Supplementary Article/Supplementary Info: | with mounting tool |
| General Information: | Includes components from OE+ET Engineteam+Kolbenschmidt+Elring. |
Show all
Show less
