Code: RS0088VR2 |
Title: Timing Chain Kit
Timing Chain Kit - RS0088VR2 ET ENGINETEAM - 03F198158B, 03F198158, 03F198158A
Car: Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+
| Chain Type: | Closed chain |
| Chain Type: | Silent Chain |
| Number of Teeth: | 40 |
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Supplementary Article/Supplementary Info: | with mounting tool |
Where to buy?
EAN: 8592779034284

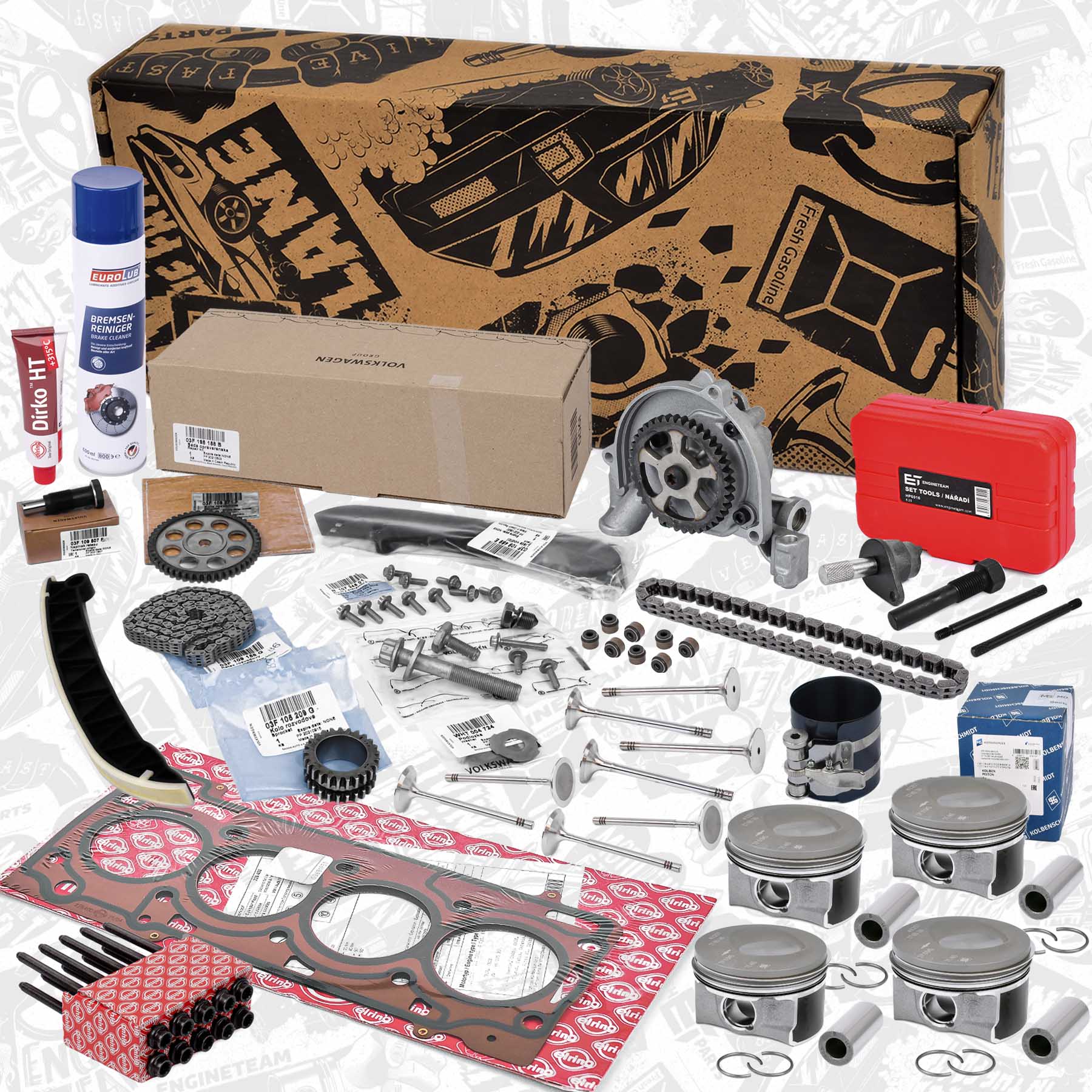

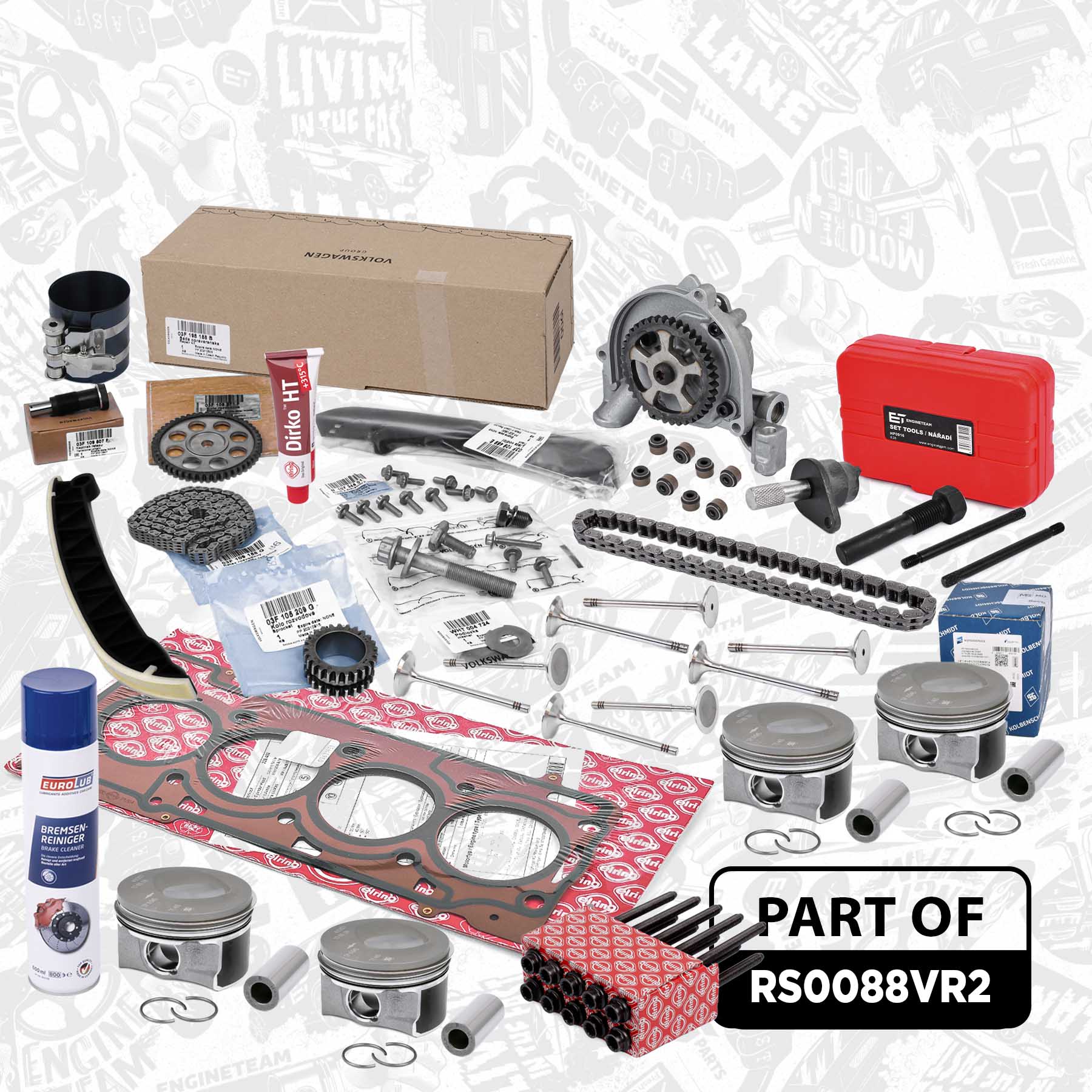

ET Engineteam advanced timing chain kit for CBZA and CBZB engines. Contains sealing substance, housing cleaner, complete Kolbenschmidt piston, TRW valves, cylinder head bolts, cylinder head gasket, piston mounting tool, oil pump, oil pump chain and timing adjustment tools. Suitable, for example, for Audi A1 / A3, Seat Altea / Ibiza / Leon / Toledo, Skoda Fabia / Octavia / Rapid / Roomster, VW Beetle / Golf / Jetta / Touran 1.2 TSI manufactured since 2008.
TIP: Are you only looking for a specific part of this kit? You can find the individual parts in our range too.
- OE timing chain kit 03F198158B

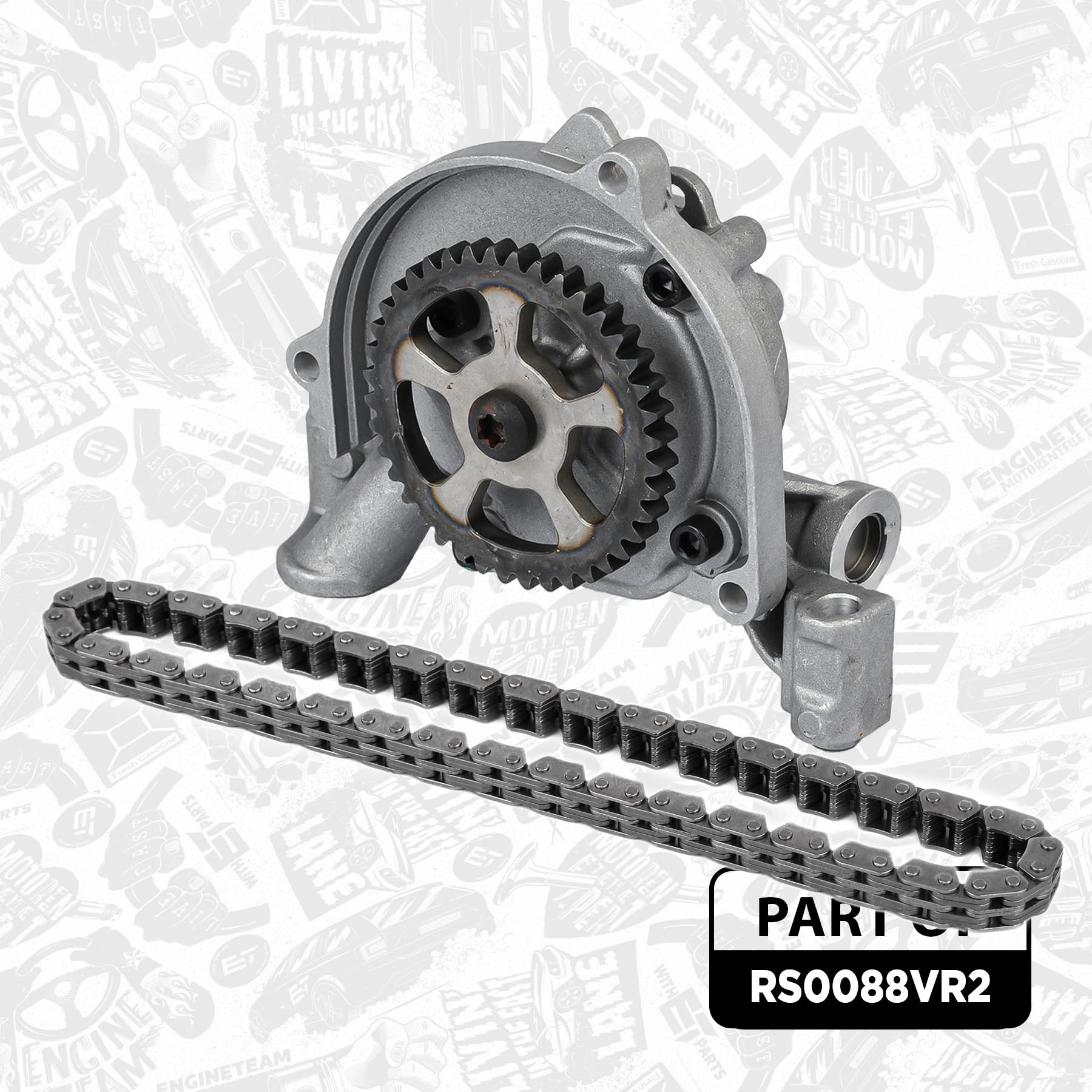

- Oil pump ET Engineteam PU0106
- Oil pump chain ET Engineteam RC0007

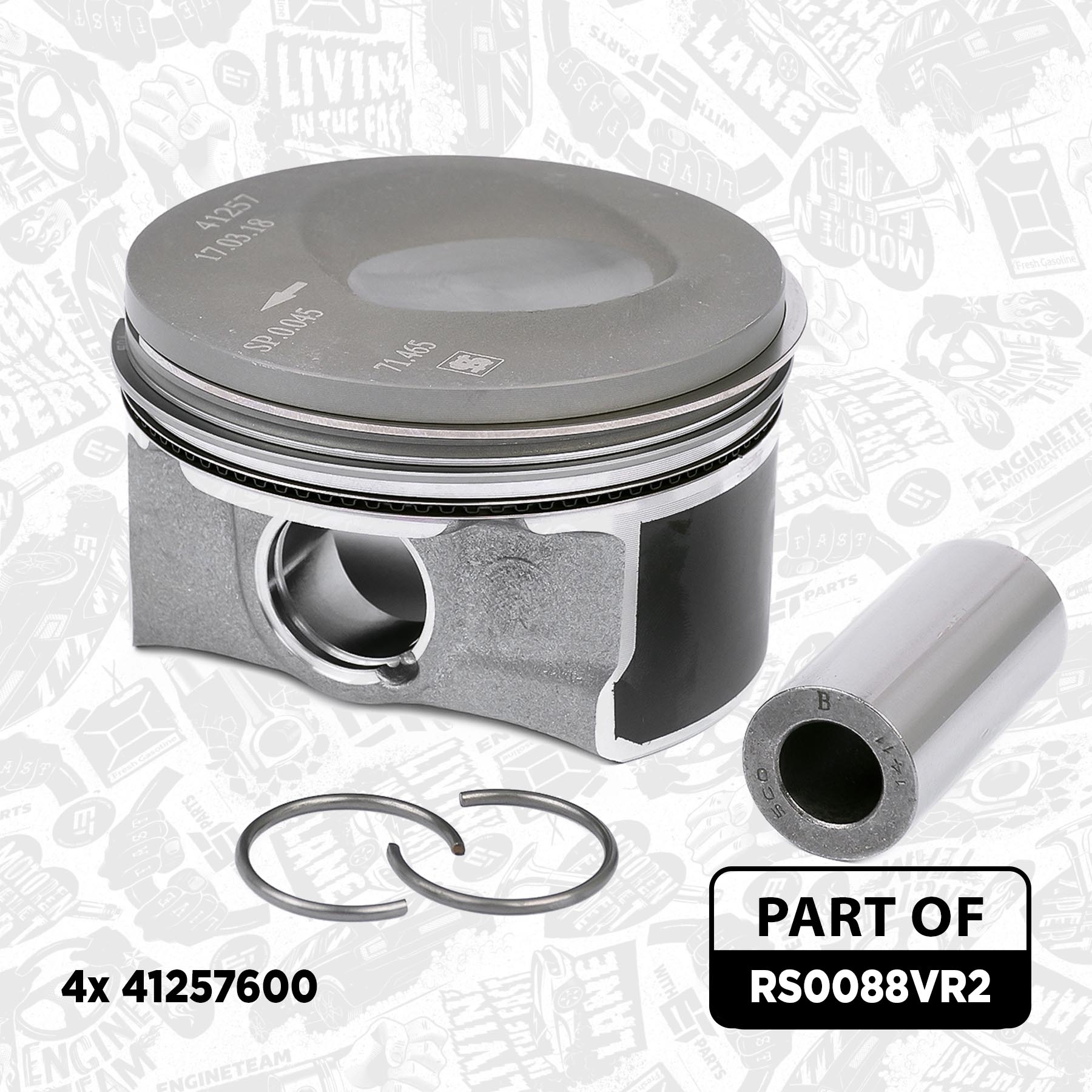

- 4x complete piston Kolbenschmidt 41257600

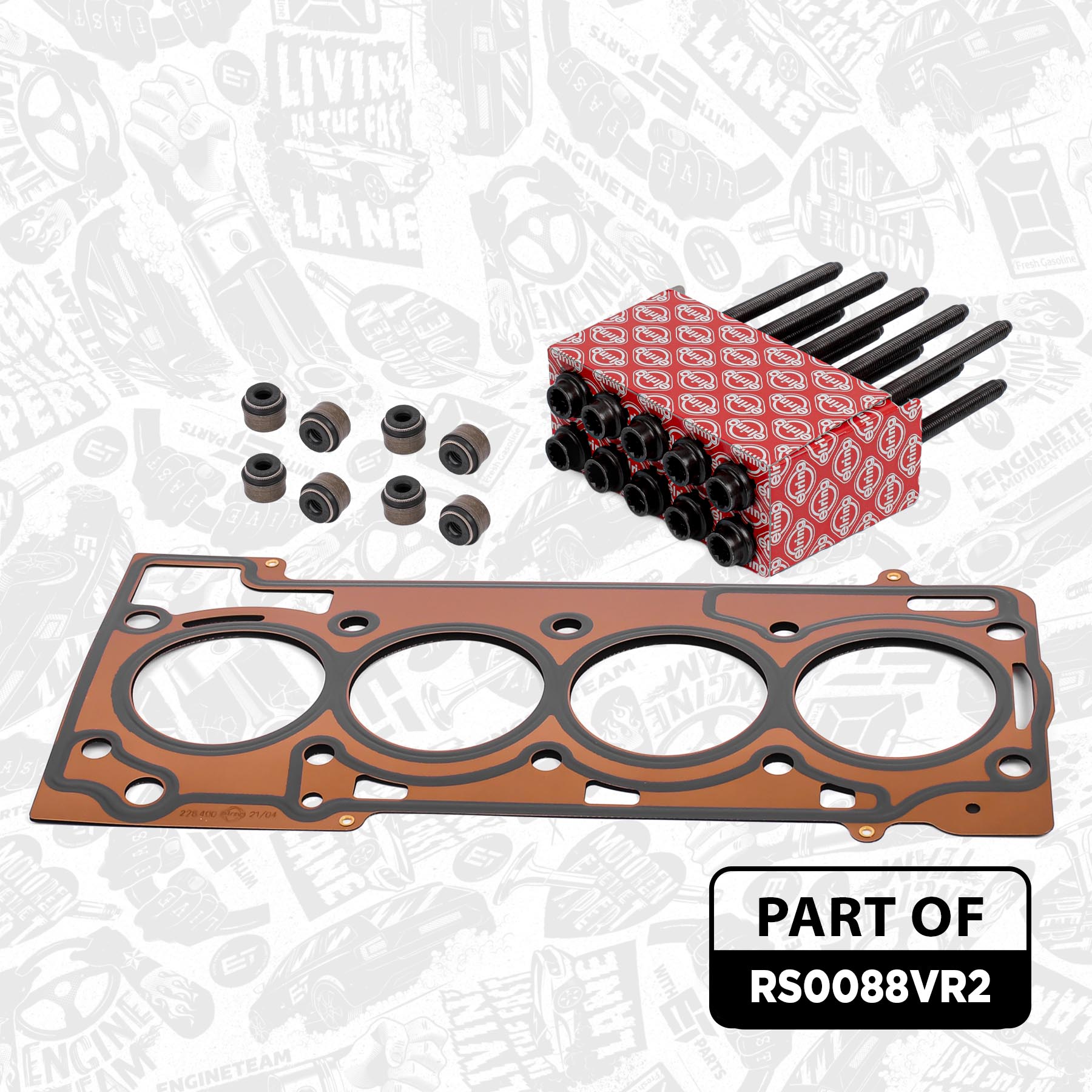

- Cylinder head gasket Elring 228.400
- Cylinder head bolts Elring 228.470 (10 pcs)
- 4x exhaust valve TRW 331161
- 4x inlet valve TRW 331153
- 8x valve stem seal Elring 724.590

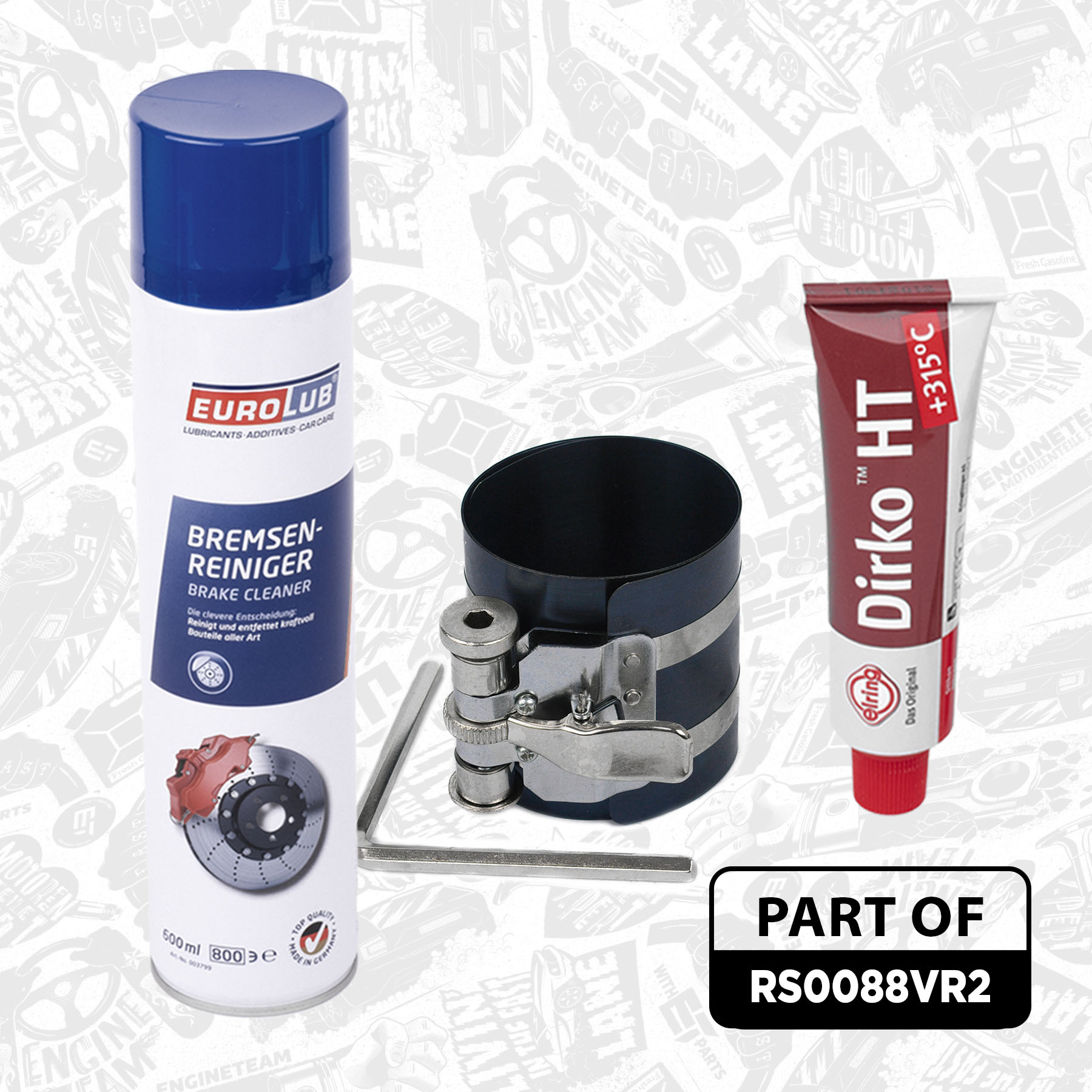

- Mounting tool PKW ET Engineteam HP0009
- Sealing substance Elring 705.708
- Cleaner HUNOLD EU003799

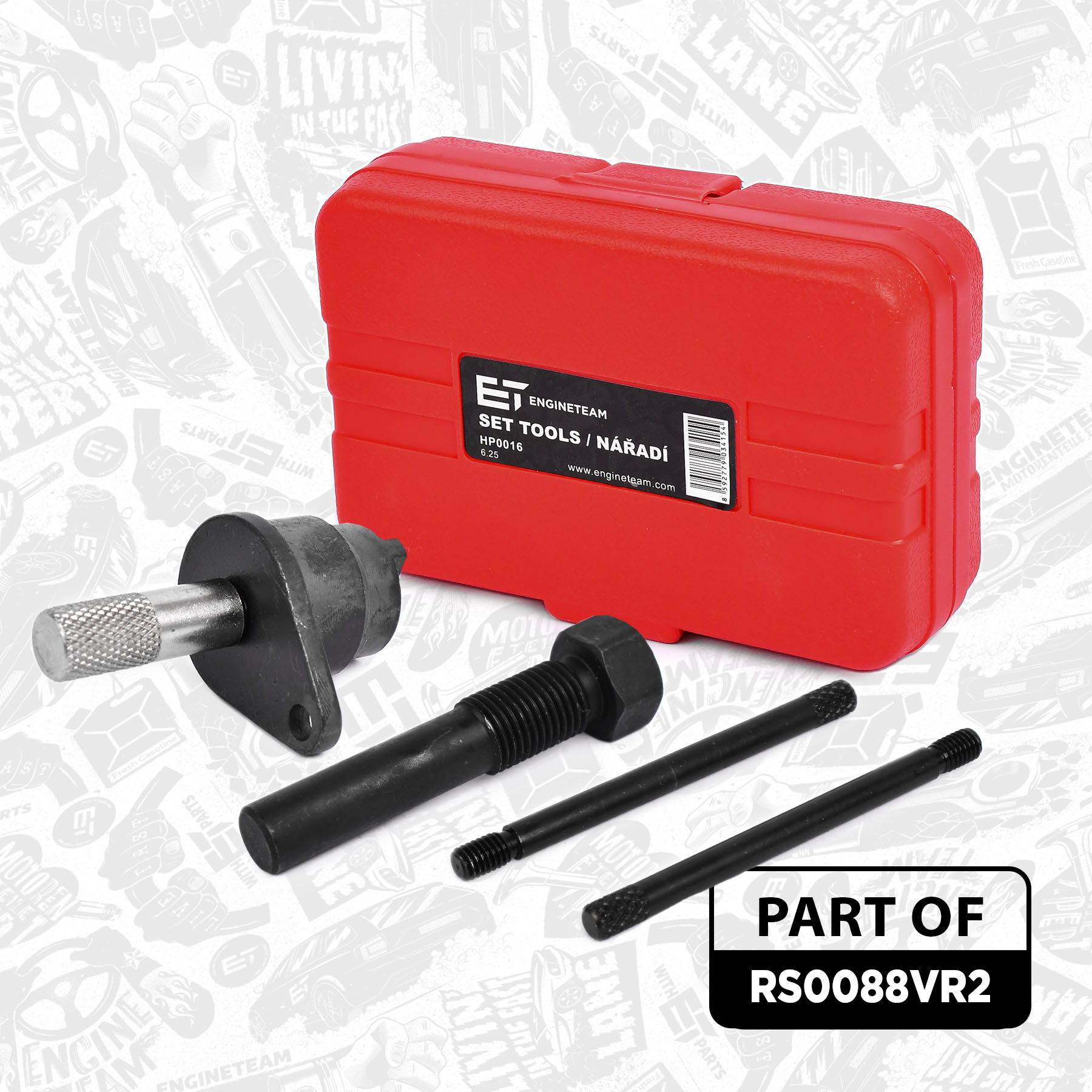

- Timing adjustment tools HP0016
Documents
Categories
Reference Numbers
- VW # 03F198158B
- VW # 03F198158
- VW # 03F198158A
- VW # 03F198229A
- VW # 03F 198 158 B
- VW # 03F 198 158
- VW # 03F 198 158 A
- VW # 03F 198 229 A
- VW # 03F109158G
- VW # 03F 109 158 G
- VW # 03F105209G
- VW # 03F 105 209 G
- VW # 03F109469E
- VW # 03F 109 469 E
- VW # 03F109509F
- VW # 03F 109 509 F
- VW # 03F109571F
- VW # 03F 109 571 F
- VW # 03F109507F
- VW # 03F 109 507 F
- VW # 03F109158J
- VW # 03F 109 158 J
- VW # 03F115225
- VW # 03F 115 225
- VW # 03F115105D
- VW # 03F 115 105D
- VW # 03F 115 105 D
- VW # N10734501
- VW # N10734401
- VW # N90813202
- VW # WHT004724
- VW # 03F 107 065 F
- VW # 03F107065F
- VW # 03F 107 065F
- VW # 03F 107 065 G
- VW # 03F107065G
- VW # 03F107065A
- VW # 03F 107 065 A
- VW # 03F107065D
- VW # 03F 107 065 D
- VW # 03F 103 383 E
- VW # 03F 103 383E
- VW # 03F103383E
- VW # WHT 004 790
- VW # 03F109611B
- VW # 03F109611C
- VW # 03F 109 611 B
- VW # 03F 109 611 C
- VW # 03F109601A
- VW # 03F 109 601 A
- VW # 06B 109 675 B
- VW # 06K 109 675
- VW # 036 109 675 A
- VW # 06J 105 675
- VW # T10340
- VW # T10414
- VW # T10341
- VW # 03F 109 158 K
- VW # 03F 109 158K
- VW # 03F109158K
- VW # 03F109507B
- VW # WHT004068
- VW # 03F109509C
- VW # 03F 109 509C
- VW # 03F 109 509 C
- VW # WHT 004 068
- VW # WHT004068
- VW # WHT 004 069
- VW # WHT004069
- VW # 03F 109 469 C
- VW # 03F 109 469C
- VW # 03F109469C
- ET ENGINETEAM # RS0088VR2
Parts list
General information
| Code: | PU0106 |
| Brand: | ET ENGINETEAM |
| Title: | Oil Pump |
| Car: | Audi A1, Skoda Fabia Rapid Yeti Roomster, VW Cady Golf CBZA CBZB 2011+ |
| Weight : | 1,40 kg |
| Stock: | 24 pcs |
General information
| Code: | RC0007 |
| Brand: | ET ENGINETEAM |
| Title: | Chain, oil pump drive |
| Car: | Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+ |
| Weight : | 0,20 kg |
Criteria
| Chain Type: | Silent Chain |
| Number of chain links: | 70 |
| Chain Type: | Closed chain |
| Stock: | 16 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | 21 pcs |
General information
| Code: | HP0016 |
| Brand: | ET ENGINETEAM |
| Title: | Adjustment Tool Kit, valve timing |
| Car: | Audi VW Seat Skoda A3 Ibiza Toledo Octavia Rapid Golf Touran 1,2 TFSI |
| Weight : | 0,46 kg |
| Stock: | 11 pcs |
Alternatives
General information
| Code: | RS0106VR4 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Car: | Audi Seat Skoda VW A3 Altea LEON Fabia Roomster Rapid Caddy 1,2 TSI CBZA CBZB 2010+ |
| Weight : | 7,43 kg |
Criteria
| Chain Type: | Closed chain |
| Chain Type: | Silent Chain |
| Number of Teeth: | 40 |
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Supplementary Article/Supplementary Info: | with mounting tool |
| Number of chains: | 2 |
| Scope of Supply: | includes components ET Engineteam + Elring |
