Piston with rings and pin - PM006000 ET ENGINETEAM - 06H107065BK, 06H107099AE, 06H107065T
Car: Skoda Superb, VW Tiguan, Audi Seat 1,8TSi BYT BZB CEAA 2006+
| Cylinder Bore [mm]: | 82,51 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29,8 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Recess Diameter [mm]: | 67 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Stock: | > 25 pcs |
EAN: 8592779019847

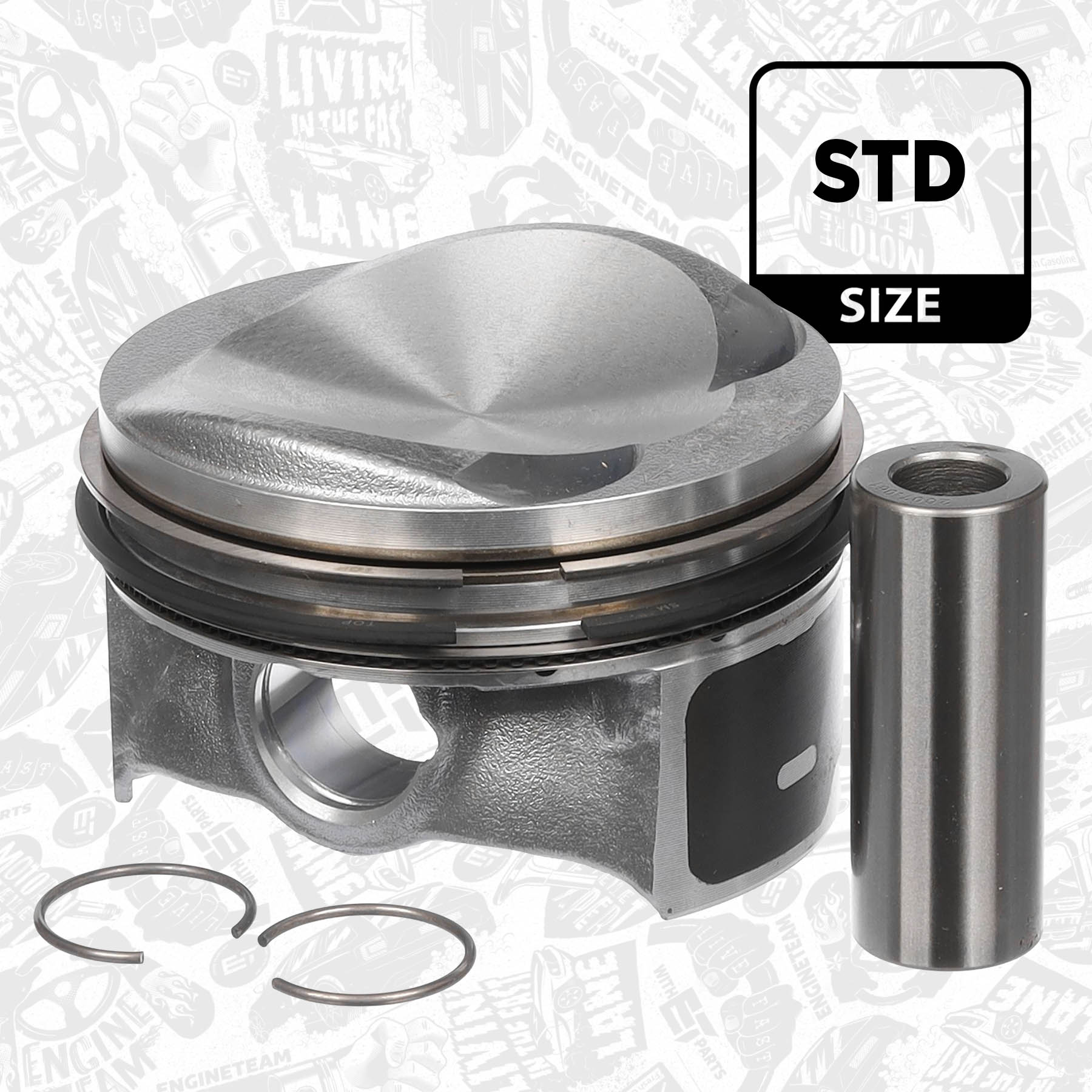

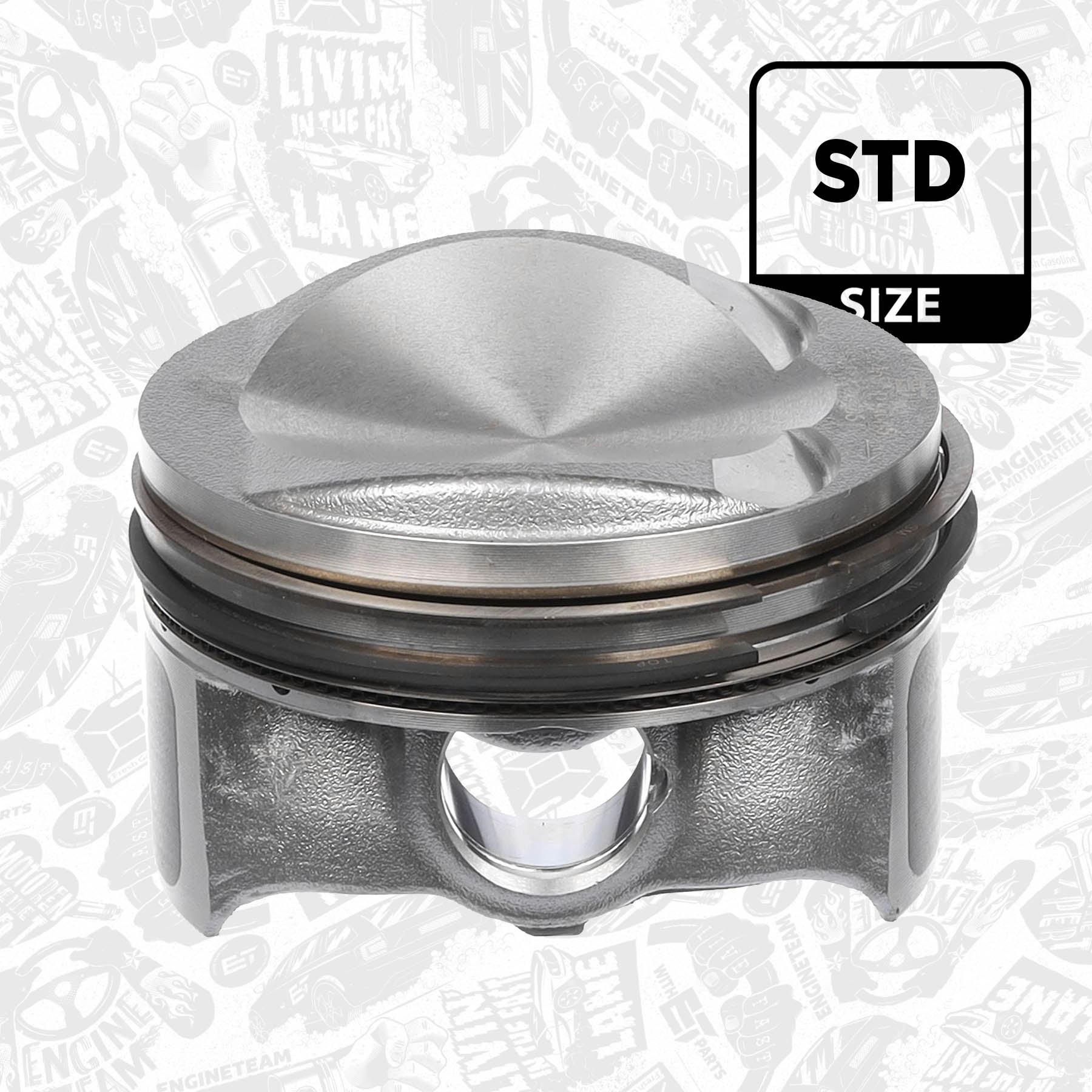

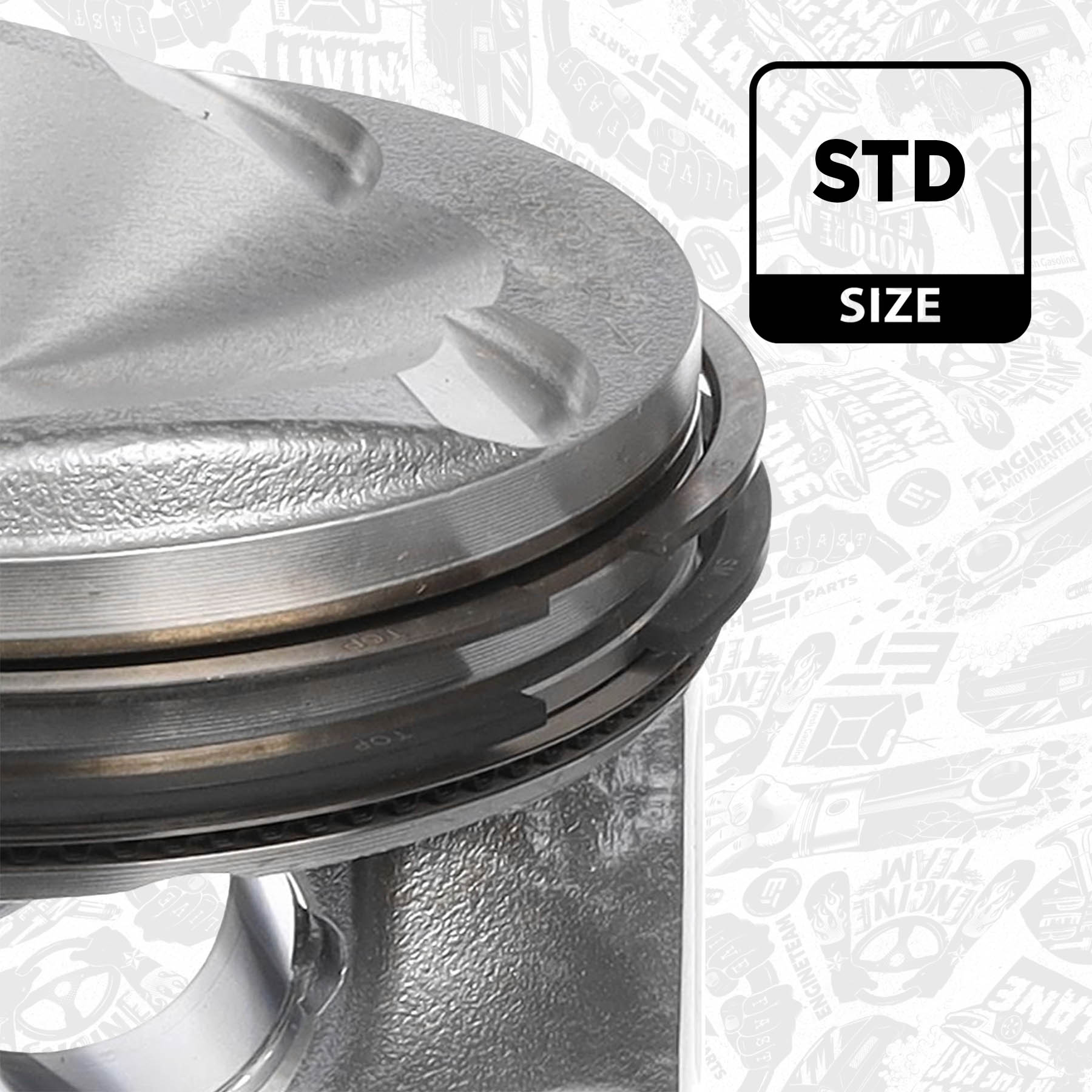

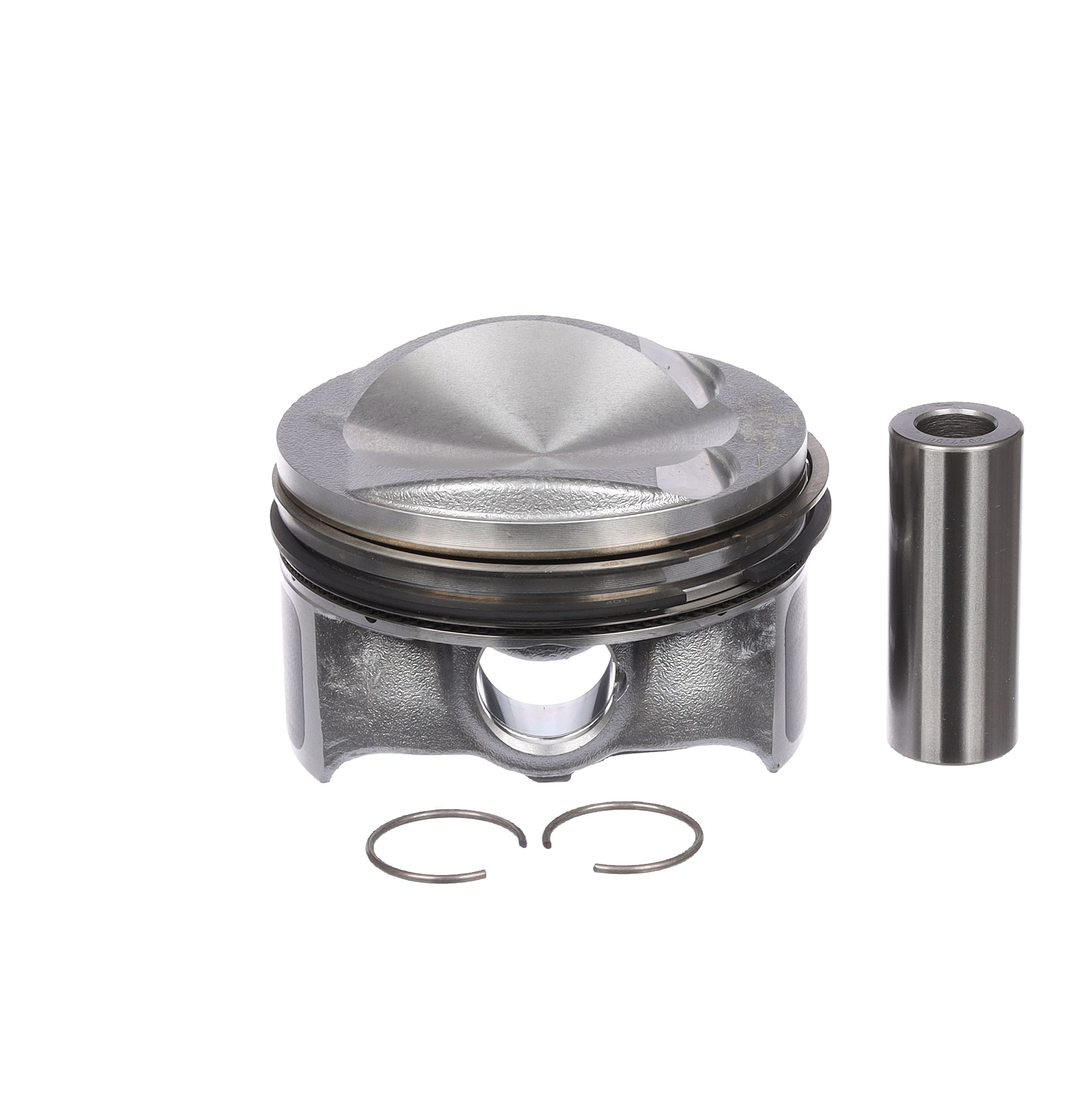

A complete piston from the Czech manufacturer ET Engineteam in standard version with piston rings and 21 mm pin. It is equipped with a piston ring carrier suitable for a trapezoidal connecting rod. For use in CEAA, CABD, BZB, BYT and other engines. Typically in VW Passat, Audi A5, Seat Toledo and Škoda Octavia with 1.8 TFSI / TSI capacity. It is a piston of identical parameters with OE.
Also available in repair sizes - an oversize piston PM006025 (+0.25 mm) and an oversize piston PM006050 (+0.5 mm).
Important information: Over the years, manufacturing processes and some components have changed. Manufacturers gradually installed newer versions of pistons with various diameters of the combustion chamber at the piston bottom. We recommend that you verify these parameters before ordering. If you know the part number from the OE catalog, the identification is straightforward. To identify the part via engine or car model, it is recommended to send a VIN code when ordering so we can verify compatibility.
The Czech company ET Engineteam is a recognized supplier and aftermarket manufacturer. It is part of the European TecDoc catalog. The quality of ET Engineteam products is comparable to OE products.
Is a part of
General information
| Code: | PM006000ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | Skoda Octavia, VW Passat, Seat Altea, Audi A3 1,8 TFSI CAVA CABB CABD 2006+ |
| Weight : | 2,10 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 4,75 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| For article number: | PM006000 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Stock: | > 25 pcs |
Alternatives
General information
| Code: | PM006000ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | Skoda Octavia, VW Passat, Seat Altea, Audi A3 1,8 TFSI CAVA CABB CABD 2006+ |
| Weight : | 2,10 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 4,75 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| For article number: | PM006000 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Stock: | > 25 pcs |
General information
| Code: | PM006000KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | 40251600S Audi A4, Seat Toledo, Skoda Octavia, VW 1,8 TSI BYT BZB CABA 2007+ |
| Weight : | 2,10 kg |
Criteria
| Bolt Head Diameter [mm]: | 21 mm |
| Piston Protrusion [mm]: | 5,7 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Recess Diameter [mm]: | 67 mm |
| For article number: | 40251600 |
| Bolt Length [mm]: | 53 mm |
| Compression Height [mm]: | 29,8 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Standard Size [STD]: | yes |
| General Information: | Includes components from Kolbenschmidt + Elring |
| Stock: | 1 pcs |
