Code: PM004800ETVR3 |

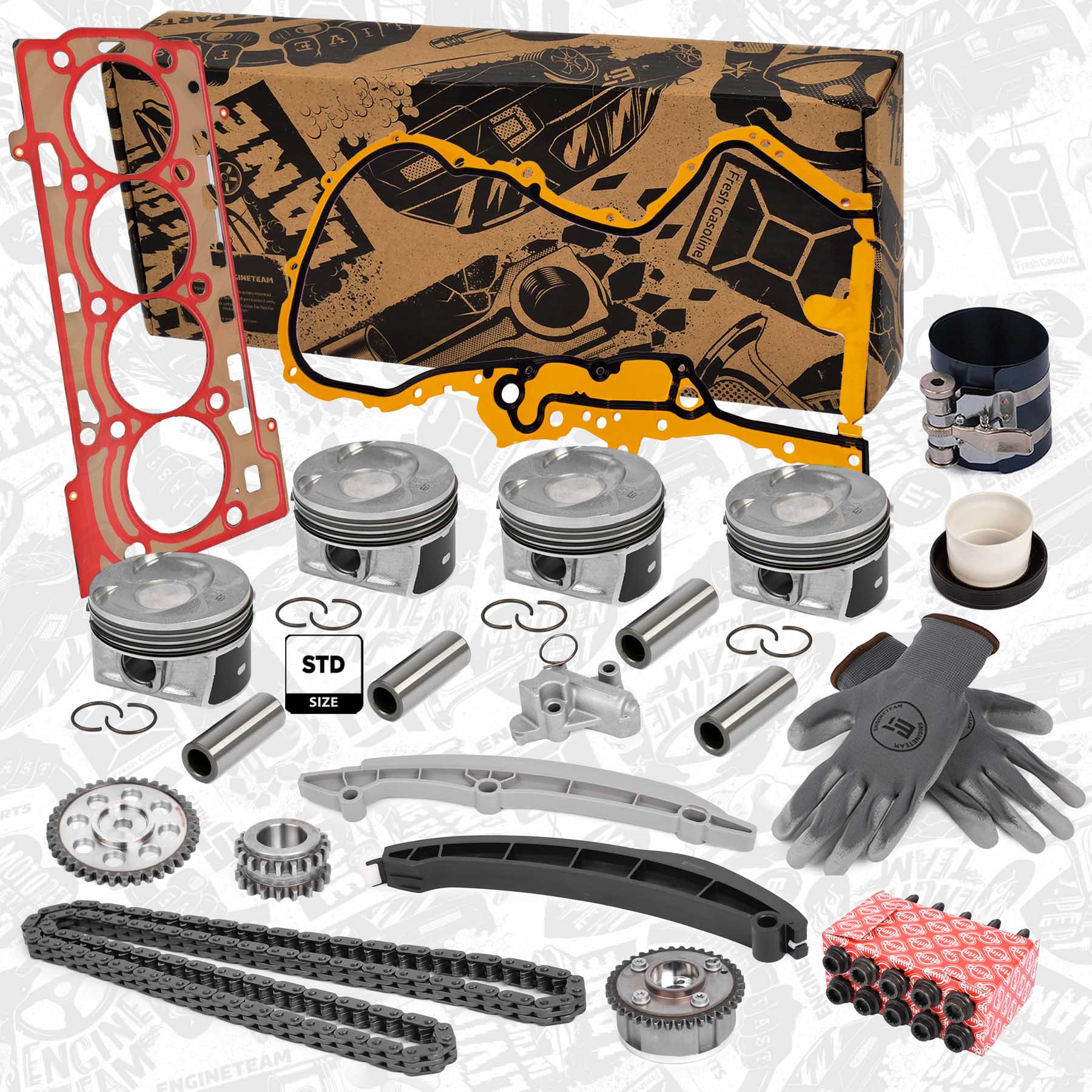

Title: Piston Set + conrods + Timing chain kit
Piston Set + conrods + Timing chain kit - PM004800ETVR3 ET ENGINETEAM - 03C107065AP, 038103085E, 03C109287F
Car: Skoda Superb, VW Passat, Seat Toledo, Audi A3 1,4 TSI CAXA CAXC 2007+
| Standard Size [STD]: | yes |
| Cylinder Bore [mm]: | 76,51 mm |
| Compression Height [mm]: | 29,2 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x PM004800 |
| Component Number: | RS0103 |
| General Information: |
All parts of the timing chain kit must be
installed All parts of the timing chain kit must be
installed [Show less] |
| General Information: |
includes components ET Engineteam + Elring includes components ET Engineteam + Elring [Show less] |
| Stock: | 3 pcs |
Where to buy?
EAN: 8592779046591
Unfortunately, there is no additional description available for this product.
Reference Numbers
- VW # 03C 107 065 AP
- VW # 03C107065AP
- VW # 038 103 085 E
- VW # 038 103 085E
- VW # 038103085E
- VW # 03C 109 287 F
- VW # 03C 109 287F
- VW # 03C109287F
- VW # 03C 109 287 G
- VW # 03C 109 287G
- VW # 03C109287G
- VW # 03C 109 287 H
- VW # 03C 109 287H
- VW # 03C109287H
- VW # 03C198229B
- VW # 03C 0198 229B
- VW # 03C 198 229 B
- VW # 03C109158H
- VW # 03C 109 158H
- VW # 03C 109 158 H
- VW # 03C109507BD
- VW # 03C 109 507BD
- VW # 03C 109 507 BD
- VW # 03C109509AA
- VW # 03C 109 509AA
- VW # 03C 109 509 AA
- VW # 03C109469R
- VW # 03C 109 469R
- VW # 03C 109 469 R
- VW # 03C109571K
- VW # 03C 109 571K
- VW # 03C 109 571 K
- VW # 03C105209BC
- VW # 03C 105 209BC
- VW # 03C 105 209 BC
- VW # 03C109088G
- VW # 03C 109 088G
- VW # 03C 109 088 G
- VW # 03C 103 383 AM
- VW # 03C 103 383AM
- VW # 03C103383AM
- VW # WHT 000 912
- VW # WHT000912
- ELRING # 155.560
- KOLBENSCHMIDT # 40477600
- VICTOR REINZ # 81-34366-00
- NÜRAL # 87-429900-00
- KOLBENSCHMIDT # 120000416353
- ELRING # 475.960
- ELRING # 475.961
- KOLBENSCHMIDT # 50009816
- ELRING # 092.750
- ELRING # 660.300
- ET ENGINETEAM # PM004800ETVR3

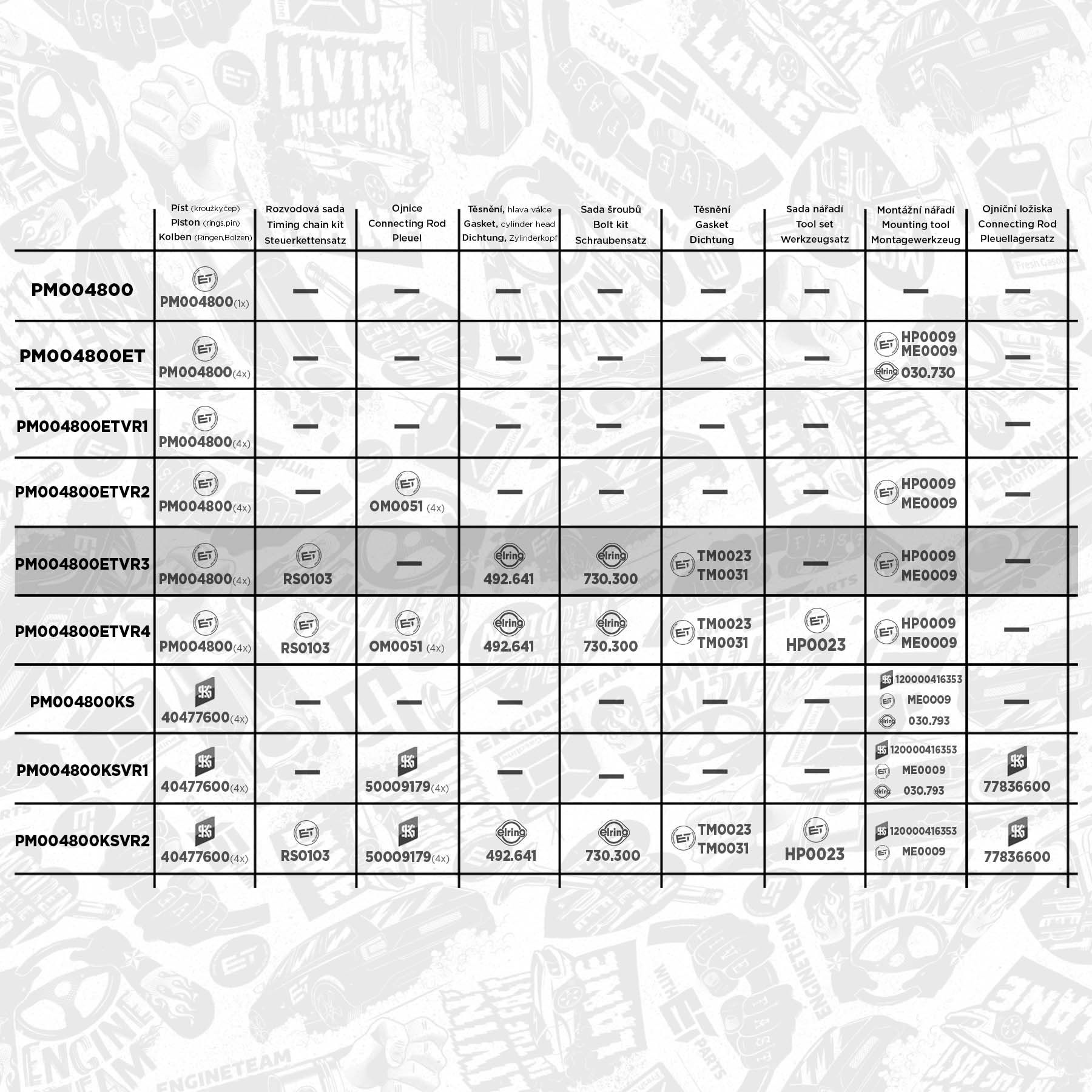

Parts list
General information
| Code: | PM004800 |
| Brand: | ET ENGINETEAM |

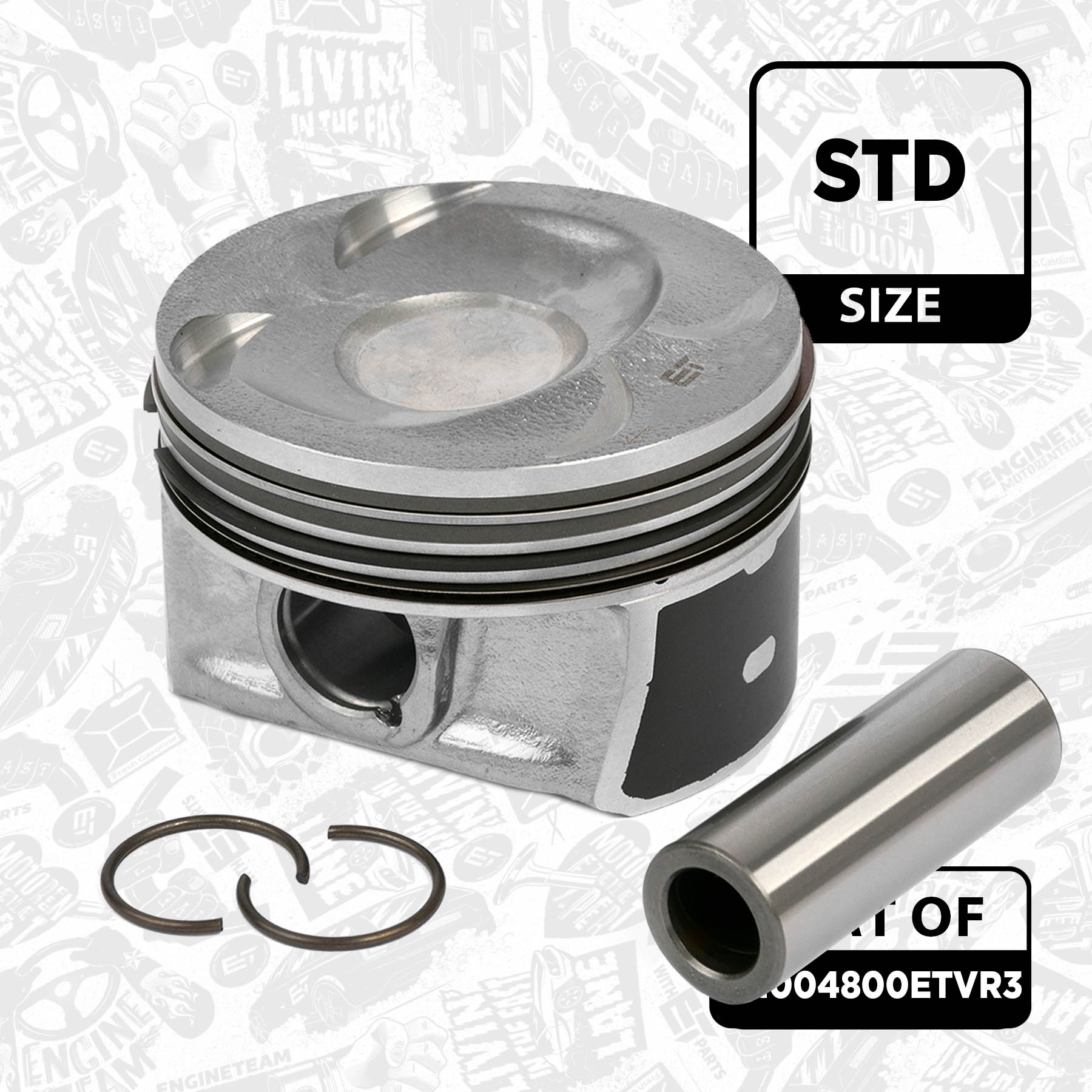

| Title: | Piston with rings and pin |
| Car: | Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+ |
| Weight : | 0,40 kg |
Criteria
| Cylinder Bore [mm]: | 76,51 mm |
| Standard Size [STD]: | yes |
| Compression Height [mm]: | 29,2 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | RS0103 |
| Brand: | ET ENGINETEAM |

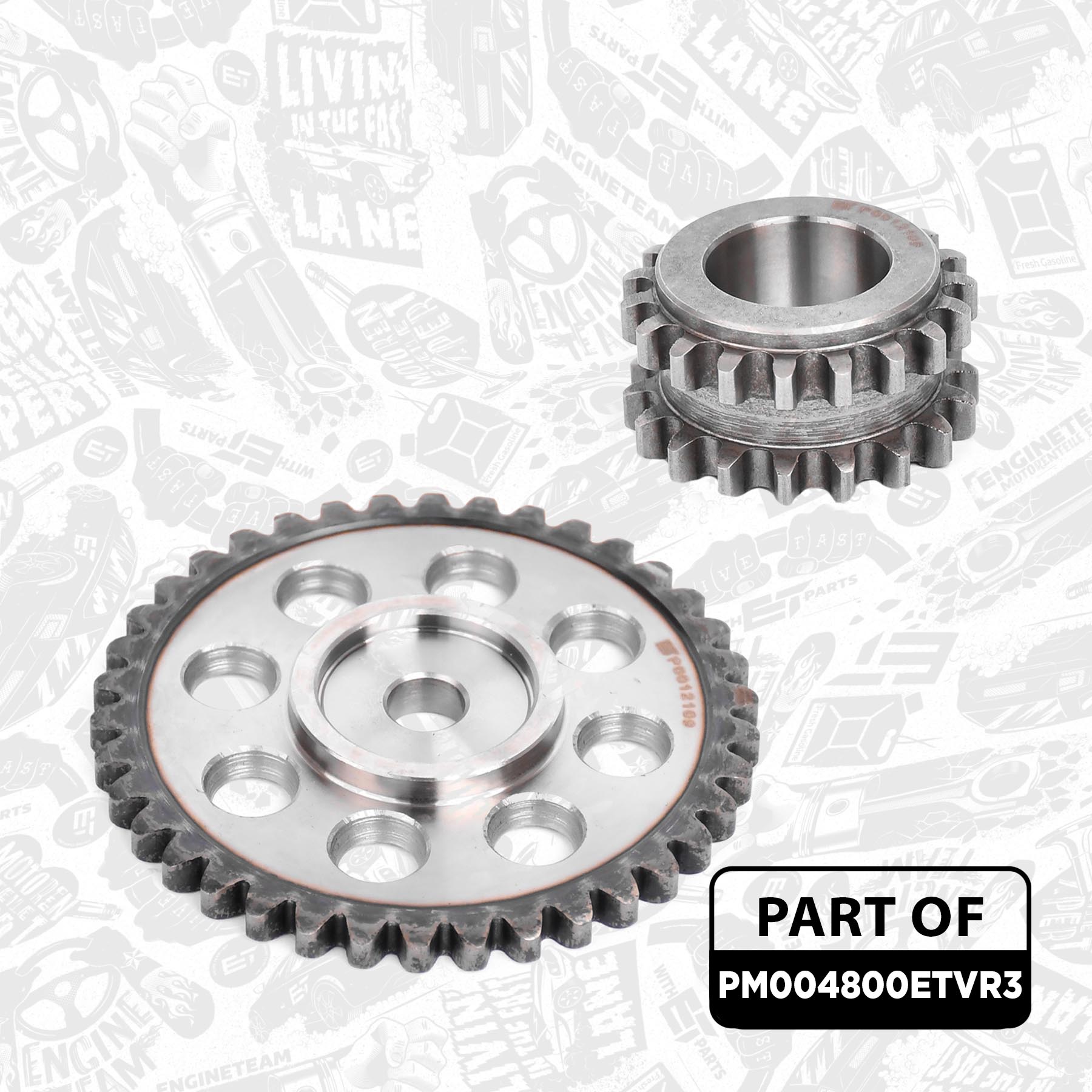

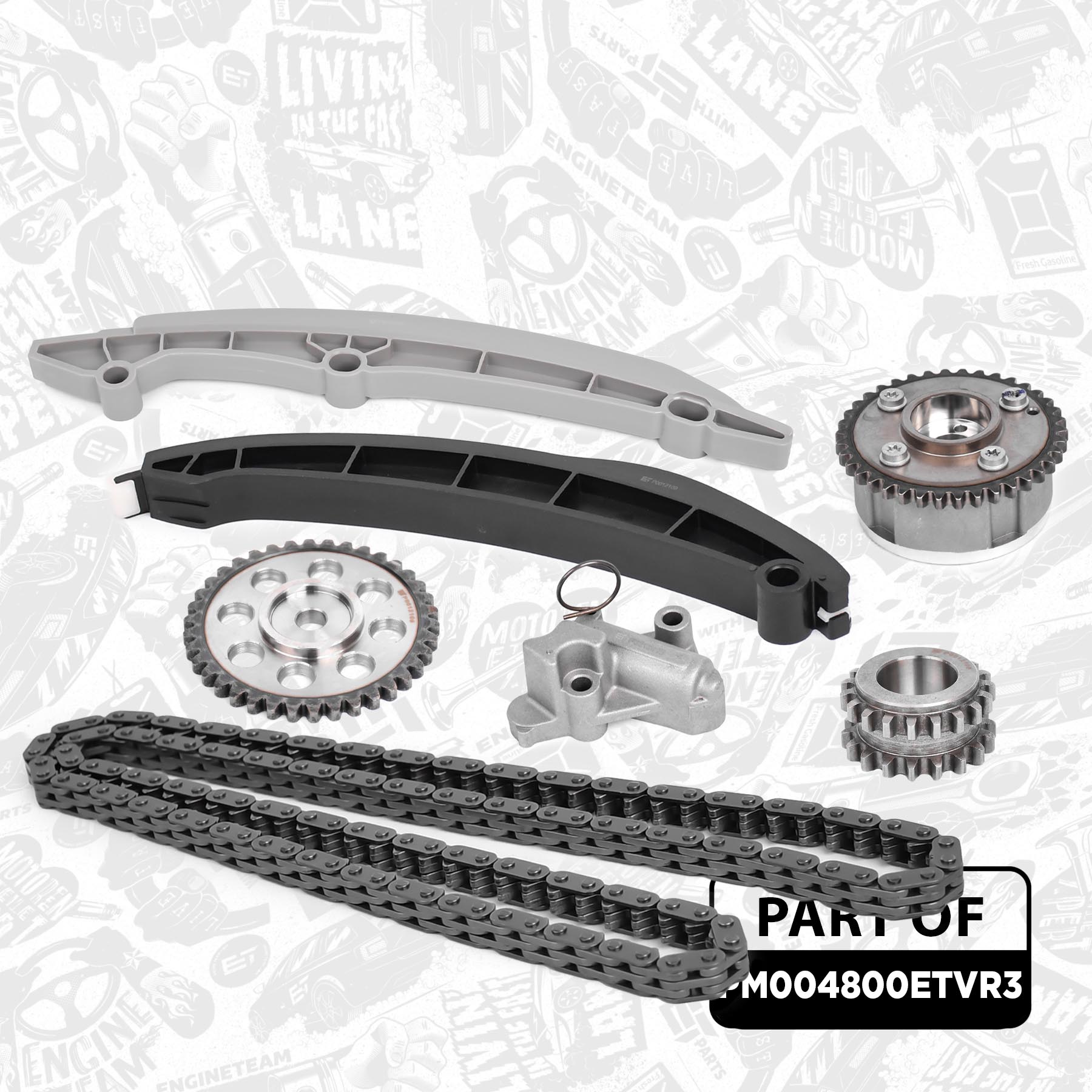

| Title: | Timing Chain Kit |
| Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
| Weight : | 1,50 kg |
Criteria

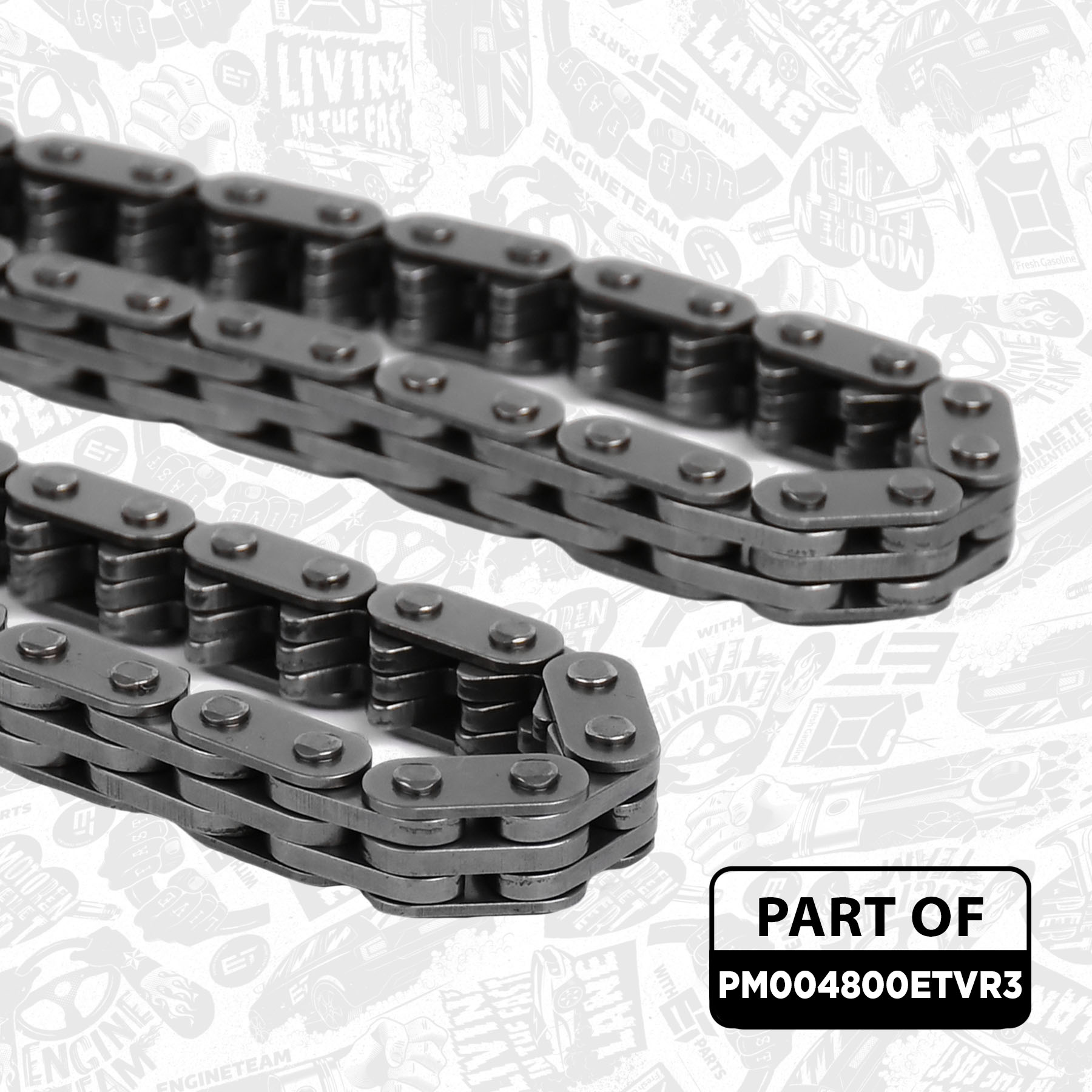

| Chain Type: | Silent Chain |
| Chain Type: | Closed chain |
| Number of Teeth: | 19 |
| Number of Teeth: | 18 |
| For OE number: | 03C198229C |
| General Information: | All parts of the timing chain kit must be installed |
| Stock: | 3 pcs |
General information
| Code: | TM0023 |
| Brand: | ET ENGINETEAM |
| Title: | Shaft Seal, crankshaft |
| Car: | ŠKODA-VW |
| Weight : | 0,01 kg |
Criteria
| Swirl Type: | Right-hand Twist |
| Inner Diameter [mm]: | 35 mm |
| Outer Diameter [mm]: | 48 mm |
| Material: | PTFE (polytetrafluoroethylene) |
| Stock: | > 25 pcs |

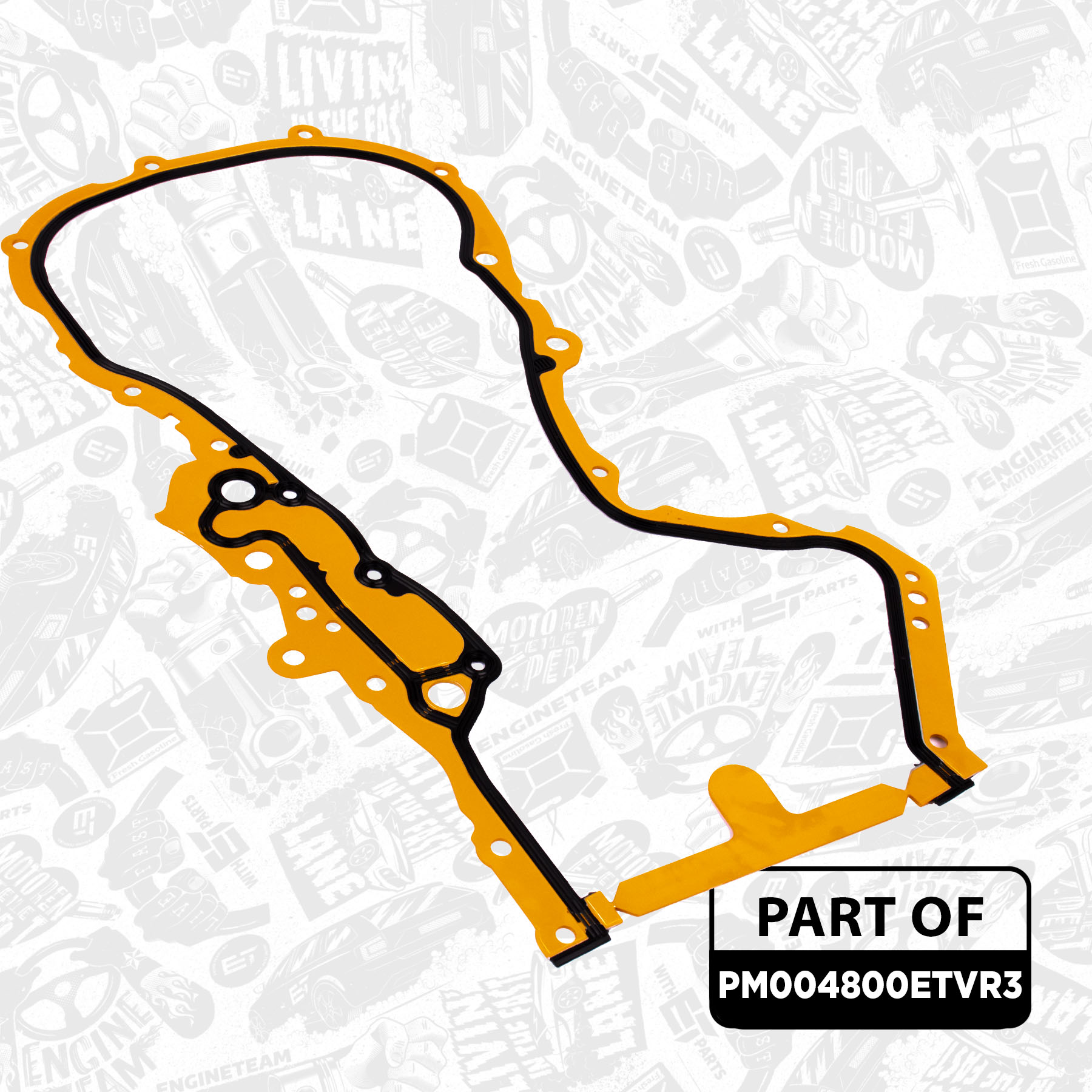

General information
| Code: | TM0031 |
| Brand: | ET ENGINETEAM |
| Title: | Gasket, timing case |
| Car: | Audi Seat Škoda VW A1 A3 IBIZA ALTEAL XL FABIA OCTAVIA RAPID GOLF EOS PASSAT 1,4 TFSI BAG CAXA 2003+ |
| Weight : | 0,00 kg |
| Stock: | > 25 pcs |

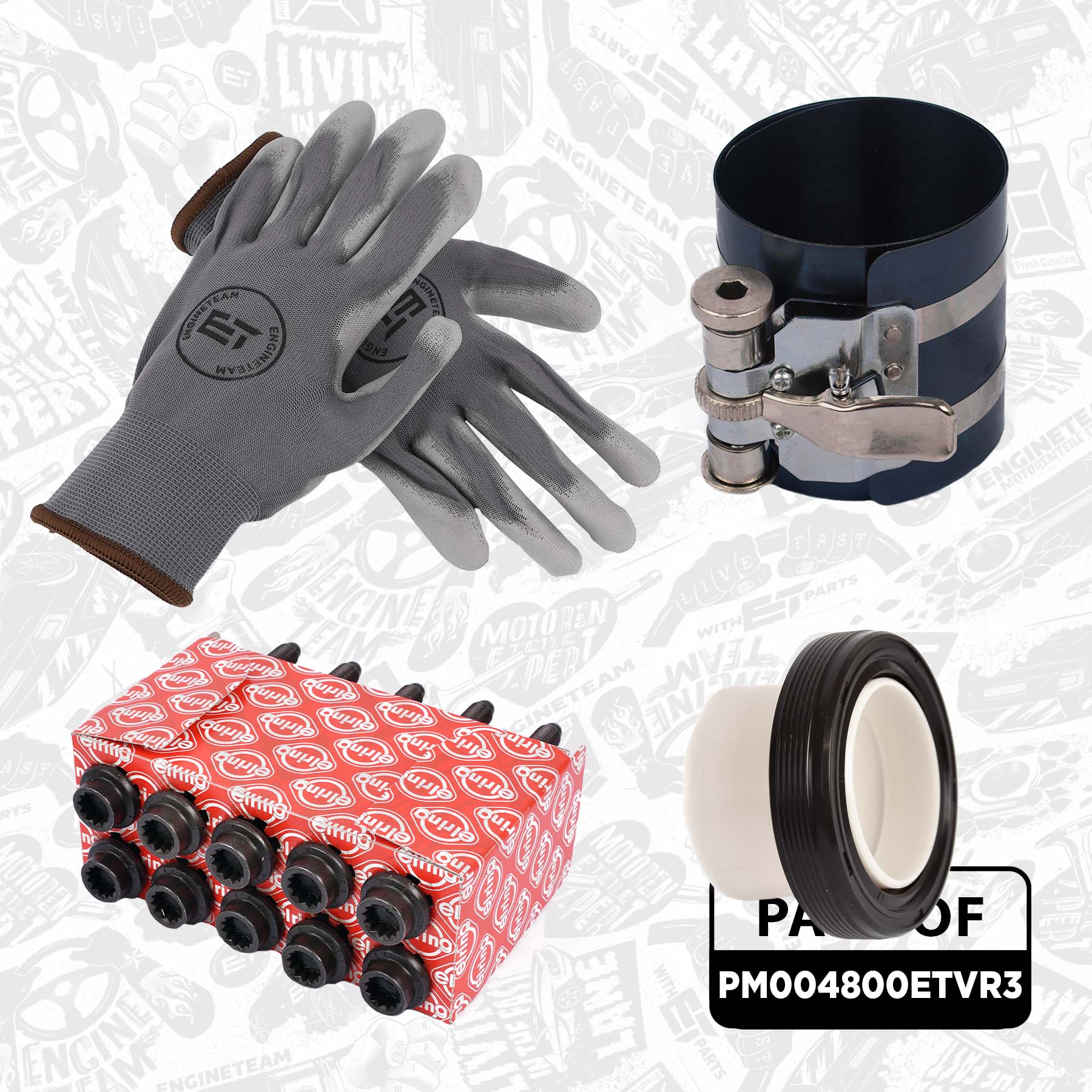

General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
| Weight : | 0,04 kg |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
