Code: PM006050ET |

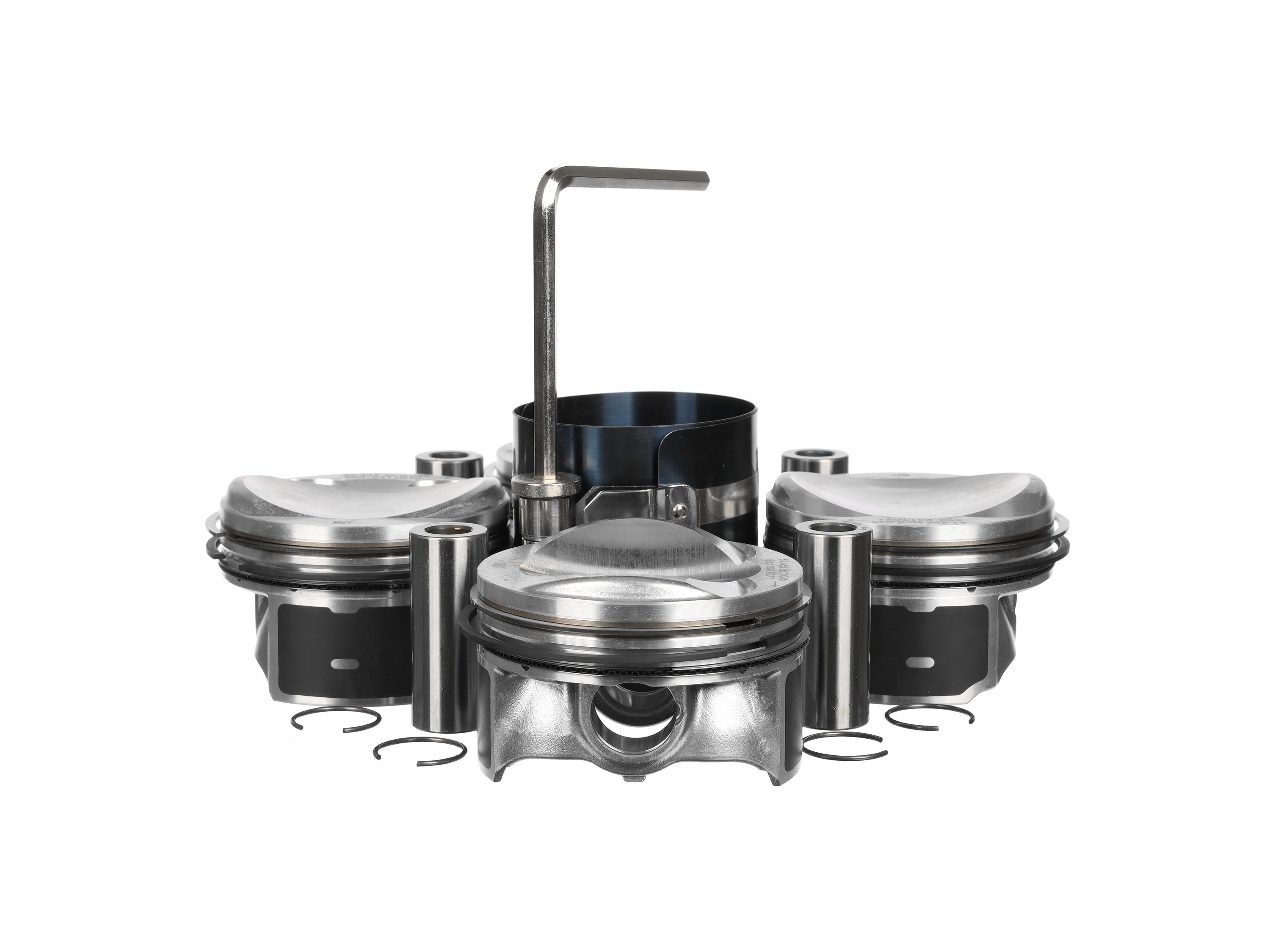

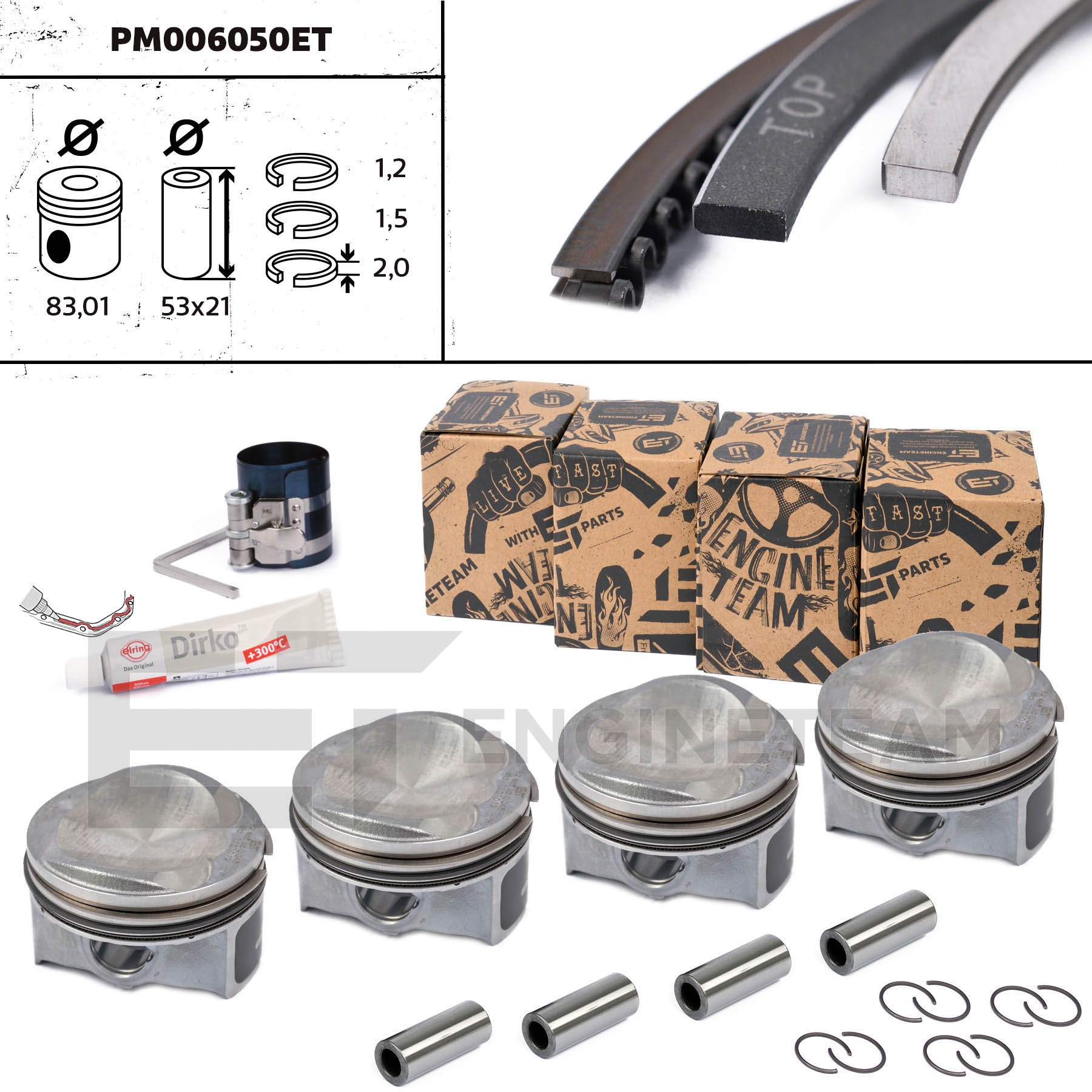

Title: Piston kit
Piston kit - PM006050ET ET ENGINETEAM - 40251620
Car: VW Passat, Audi A5, Skoda Superb, Seat Leon 1,8 TSI BYT BZB CDAA 2006+
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 4,75 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x PM006050 |
| Stock: | 9 pcs |
Where to buy?
EAN: 8592779021673
Unfortunately, there is no additional description available for this product.
Reference Numbers
Parts list
General information
| Code: | PM006050 |
| Brand: | ET ENGINETEAM |

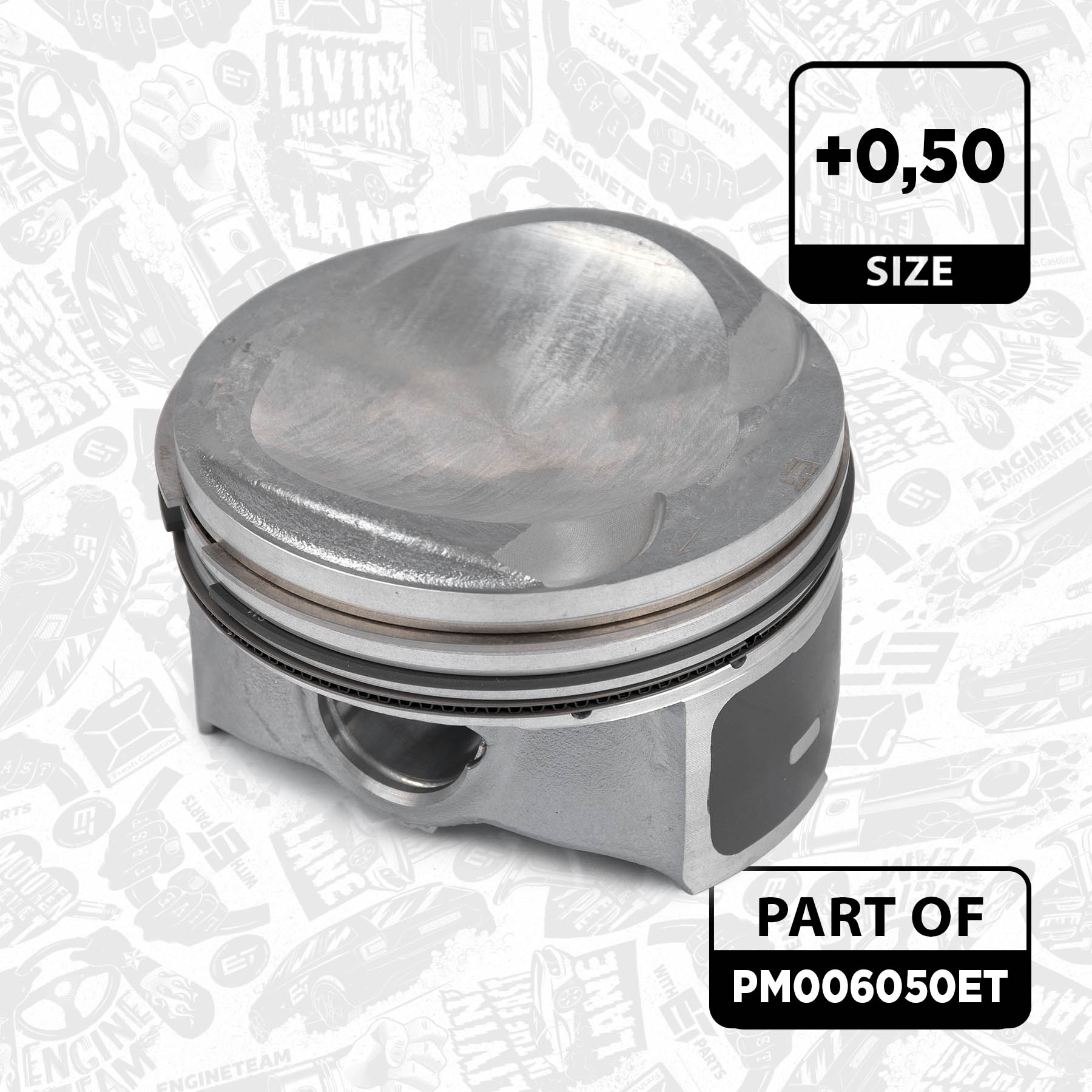

| Title: | Piston with rings and pin |
| Car: | Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA |
| Weight : | 0,50 kg |
Criteria
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 4,75 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
| Weight : | 0,04 kg |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |

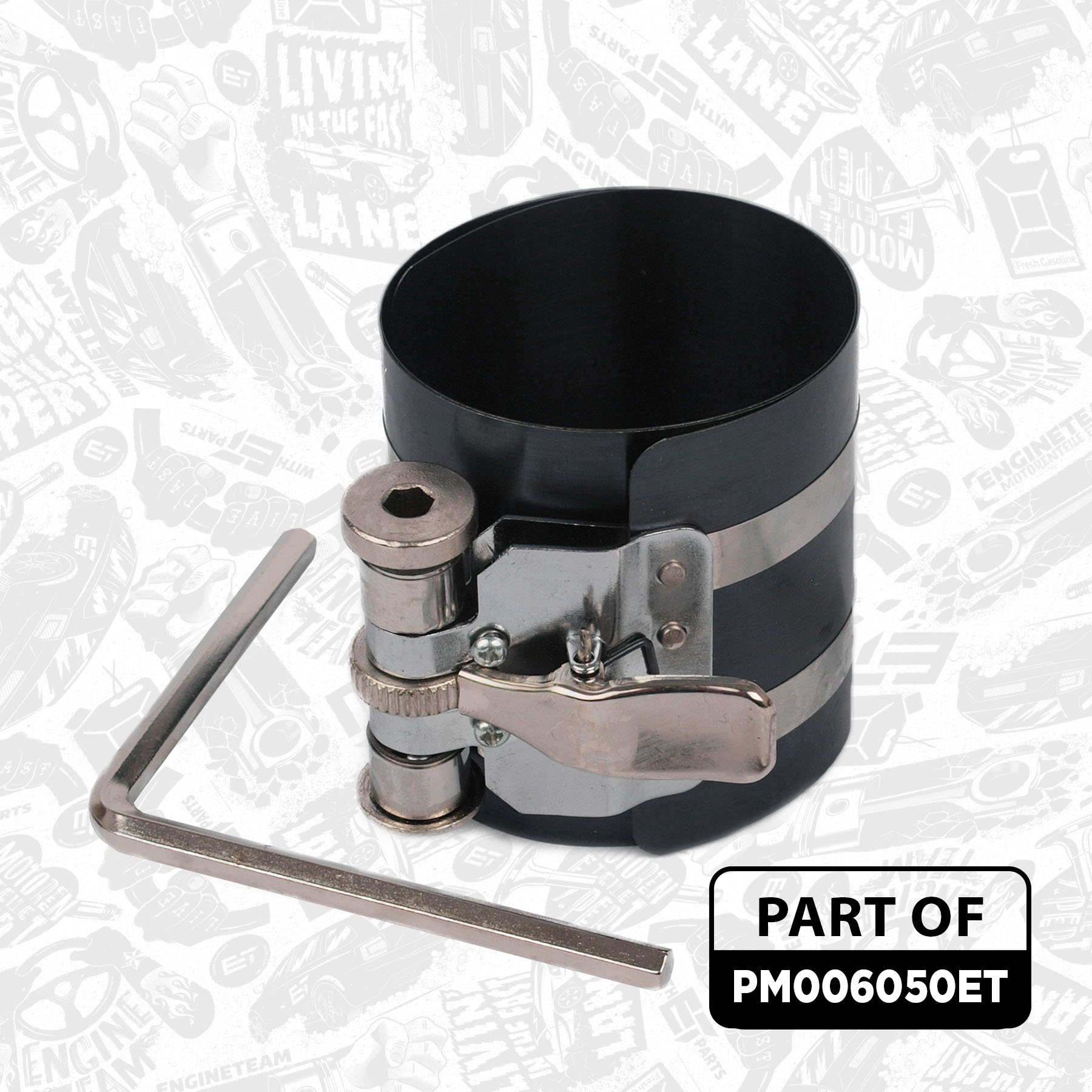

| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
Alternatives
General information
| Code: | PM006050 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA |
| Weight : | 0,50 kg |
Criteria
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 4,75 mm |
| Bolt Length [mm]: | 53 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | PM006050KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | 40251620S Audi A5, Seat Altea, Skoda Octavia, VW 1,8 TSI CEA CEAA CGYA 2007+ |
| Weight : | 2,10 kg |
Criteria
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston Protrusion [mm]: | 5,7 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Recess Diameter [mm]: | 67 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Bolt Length [mm]: | 53 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x 40251620 |
| Cylinder Bore [mm]: | 83,01 mm |
| General Information: | Includes components from Kolbenschmidt + Elring |
Show all
Show less
